Sparex - S.163753 - LED Front Headlight Kit Massey Ferguson
Sparex - S.163753 - LED Front Headlight Kit Massey Ferguson
Sparex - S.163753 - LED Front Headlight Kit Massey Ferguson
Sparex - S.163753 - LED Front Headlight Kit Massey Ferguson
Sparex - S.163753 - LED Front Headlight Kit Massey Ferguson
Sparex - S.163753 - LED Front Headlight Kit Massey Ferguson
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Sparex - S.163753 - LED Front Headlight Kit Massey Ferguson

Sparex - S.163753 - LED Front Headlight Kit Massey Ferguson

€306.08

(Excl. VAT)

Price

(Excl. VAT)

€306.08

Product Description

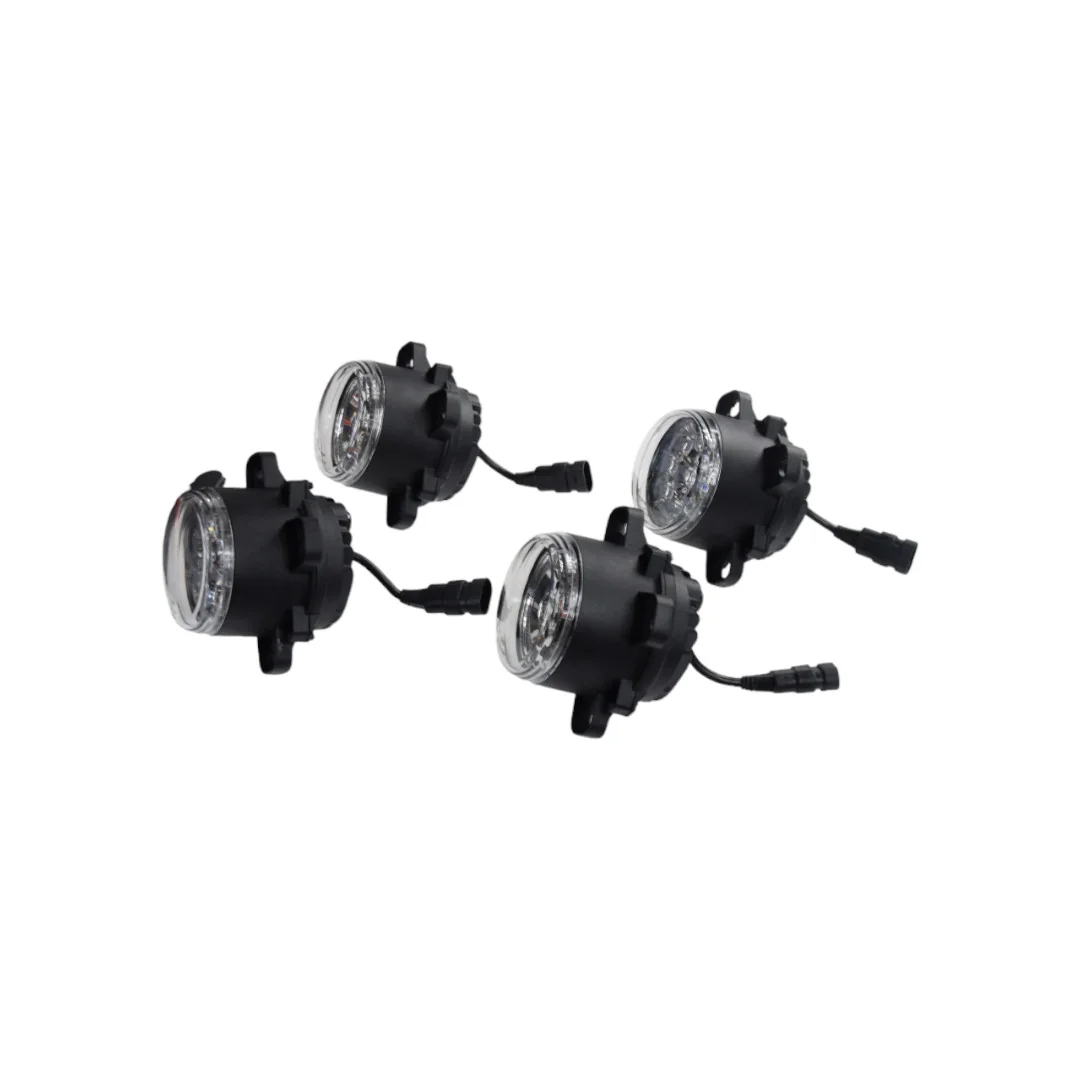

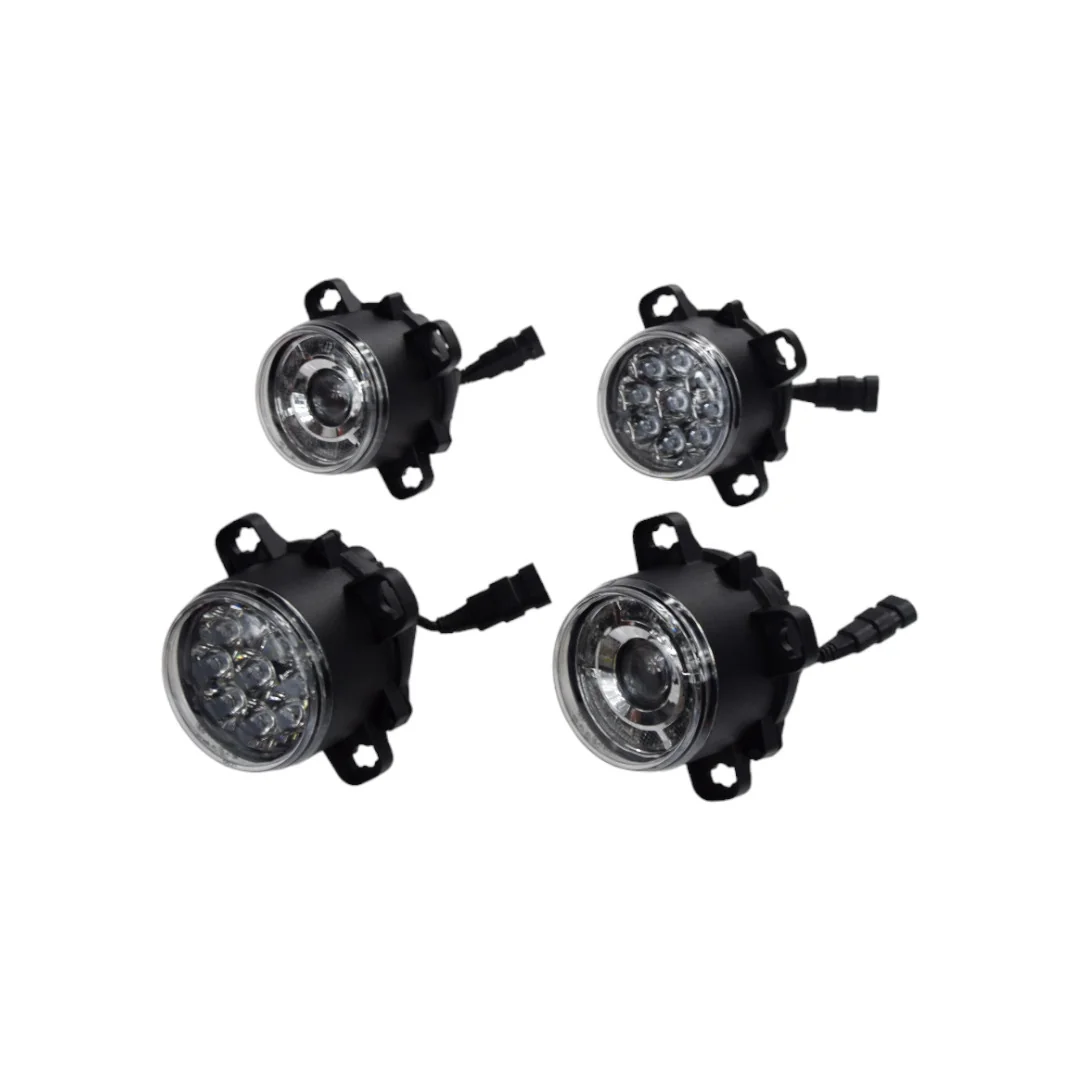

This LED headlamp set provides the forward lighting function for the host tractor. The kit includes two high-beam units and two low-beam units, each with its own LED array. The low-beam lamp uses a single LED rated at 15 watts, while the high-beam lamp uses nine LEDs totaling 45 watts. The lamps are sealed to an IP6K9K rating, meaning they resist high-pressure water and dust ingress. The operating temperature range covers conditions from -30 to 50 degrees Celsius. The set includes mounting screws for installation.
Sparex

Product Details

Brand
Sparex
Fits

Massey ferguson

56085609561056115612561357085709571057115712571366126613661466156616671167126713671467156716671876147615761676187619762076227624762677147715771677187719772077227724772686508660867086808690872787308732873587378740
Ce
Yes
Rohs
Yes
Width
118 mm
Height
109 mm
Voltage
12 V
Application
Tractors and vehicles
Cable Length
100 mm
Homologation
Yes
Product Type
Lamp
Set Includes
2x high beam lights, 2x low beam lights, 4x set of mounting screws
Ip Protection Rating
:IP6K9K
Operating Temperature Range
-30 to 50°C
Number Of Leds / Watt Low Beam
1 x 15W LED
Number Of Leds / Watt High Beam
9 x 5W LED
Lumen Output Low Beam (Nominal // Effective)
1320 LM / 460 LM
Lumen Output High Beam (Nominal // Effective)
4050 LM / 1960 LM
Manufacturer
Sparex
