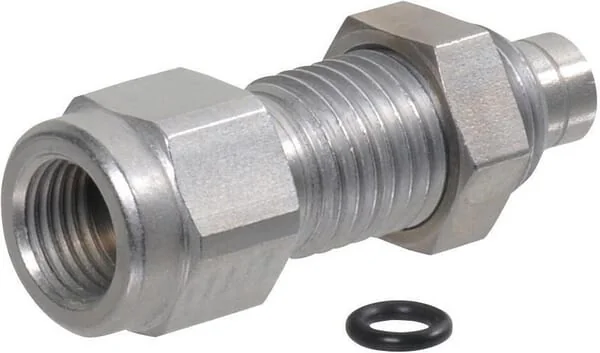

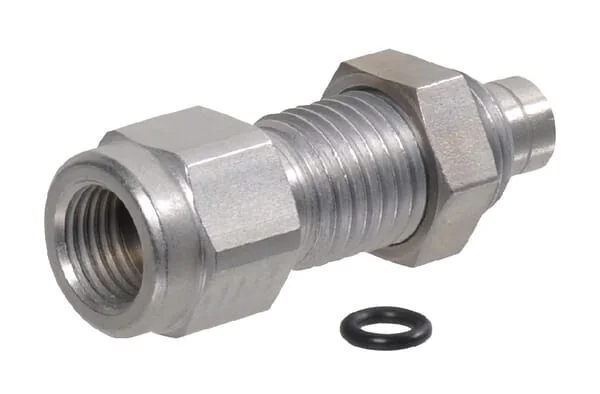

Spradow - MA2012 - Spradow Gauge Connection 1/2 BSP
Spradow - MA2012 - Spradow Gauge Connection 1/2 BSP
Spradow - MA2012 - Spradow Gauge Connection 1/2 BSP
Spradow - MA2012 - Spradow Gauge Connection 1/2 BSP
Spradow - MA2012 - Spradow Gauge Connection 1/2 BSP

In stock - ready to ship

Order now for delivery between 19 May and 22 May
Free shipping on orders over €60

Pay Securely with

Spradow - MA2012 - Spradow Gauge Connection 1/2 BSP

Spradow - MA2012 - Spradow Gauge Connection 1/2 BSP

€7.48

(Excl. VAT)

Price

(Excl. VAT)

€7.48

Product Description

Measuring points with bulkhead couplings for fixed mounting Measuring point connection M16x2.0 Available in M16x1.5 on request
Spradow

Product Details

Brand
Spradow
Unit
Each
Shape
Straight - 2 connection sides
Material
Steel
HTotal length
66 mm
Product details
Measuring points with bulkhead couplings for fixed mounting Measuring point connection M16x2.0 Available in M16x1.5 on request
Long description
Bulkhead gauge female MA 20G
Surface treatment
Zinc, Nickel-plated
Connection 2, type
Thread
Connection no 1 type
Thread
Max working pressure
630 BAR
Connection 2, thread type
Metric
Connection 2, thread pitch
2.00 mm
Connection no 1 thread type
BSP
S2Connection 2, wrench size
27.0 mm
Connection 2, thread diameter
M16
S1Connection no 1 wrench size
24.0 mm
Connection 2, type - male/female
Male
Connection no 1 threads per inch
14
DConnection no 1 thread diameter
1/2 Inch
Connection no 1 type - male/female
Female
Manufacturer
Spradow
