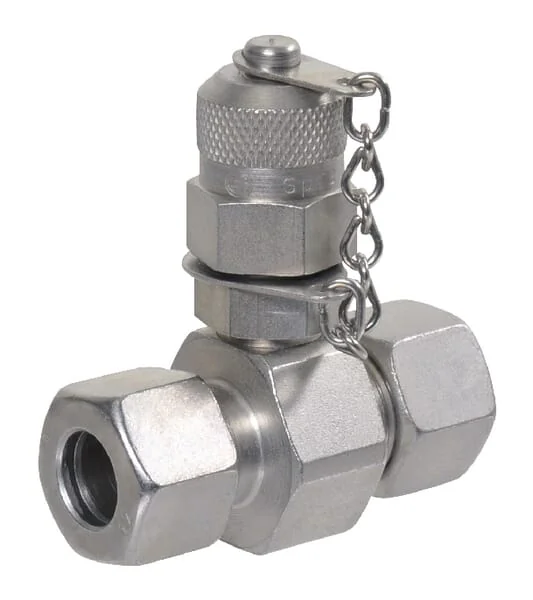

Spradow - MGV10S - Spradow Measurement Point Coupling
Spradow - MGV10S - Spradow Measurement Point Coupling
Spradow - MGV10S - Spradow Measurement Point Coupling
Spradow - MGV10S - Spradow Measurement Point Coupling

In stock - ready to ship

Order now for delivery between 18 May and 21 May
Free shipping on orders over €60

Pay Securely with

Spradow - MGV10S - Spradow Measurement Point Coupling

Spradow - MGV10S - Spradow Measurement Point Coupling

€12.32

(Excl. VAT)

Price

(Excl. VAT)

€12.32

Product Description

Measuring coupling Pipe installation T coupling Measuring point connection M16x2.0 Available in M16x1.5 on request
Spradow

Product Details

Brand
Spradow
Unit
Each
Shape
Tee (T) - 3 connections
Series
10S
Material
Steel
Body height
24 mm
DIN standard
228 259
ISO standard
228
Product details
Measuring coupling Pipe installation T coupling Measuring point connection M16x2.0 Available in M16x1.5 on request
Long description
With these T couplings, a fixed measurement point can be easily provided in the pipework.
Surface treatment
Zinc Nickel-plated
Connection 2, type
Cutting ring
Connection 3, type
Thread
Connection no 1 type
Cutting ring
Max working pressure
630 BAR
Connection 2, diameter
10 mm
Connection no 1 diameter
10 mm
Connection 2, thread type
Metric
Connection 3, thread type
Metric
Connection 3, thread pitch
1.50 mm
Connection no 1 thread type
Metric
Connection no 1 wrench size
22.0 mm
Connection 3, thread diameter
M16
Connection 2, type - male/female
Female
Connection 3, type - male/female
Male
Connection no 1 type - male/female
Female
Manufacturer
Spradow
