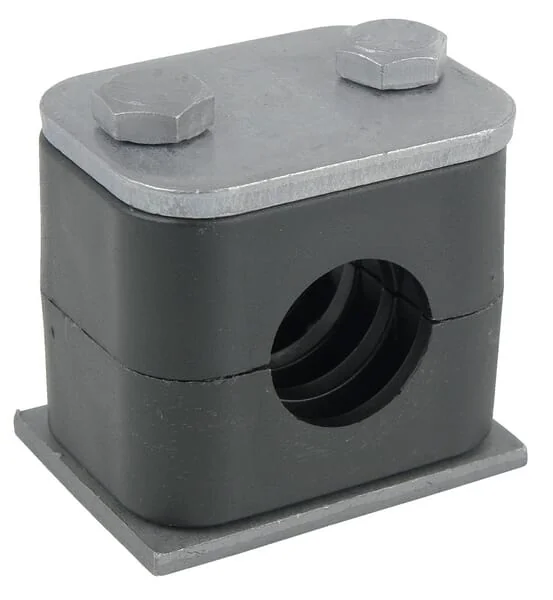

Stauff - RS112P005 - Stauff Pipe Clamp Complete 12 mm (5)
Stauff - RS112P005 - Stauff Pipe Clamp Complete 12 mm (5)
Stauff - RS112P005 - Stauff Pipe Clamp Complete 12 mm (5)
Stauff - RS112P005 - Stauff Pipe Clamp Complete 12 mm (5)
Stauff - RS112P005 - Stauff Pipe Clamp Complete 12 mm (5)
Stauff - RS112P005 - Stauff Pipe Clamp Complete 12 mm (5)

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping on orders over €60

Pay Securely with

Stauff - RS112P005 - Stauff Pipe Clamp Complete 12 mm (5)

Stauff - RS112P005 - Stauff Pipe Clamp Complete 12 mm (5)

€9.02

(Excl. VAT)

Price

(Excl. VAT)

€9.02

Product Description

Ribbed inner surface with pre-tensioning Good UV resistance Material: Polypropylene Rounded edges Polypropylene P001: 1 clamp P005: 5 clamps P025: 25 clamps
Stauff
Stauff specializes in hydraulic filtration, measurement, and connection systems for agricultural and forestry machinery. Their solutions optimize fluid cleanliness and system efficiency in tractors and implements. The brand is recognized for modular, easy-to-maintain components. Shop more than 515 genuine Stauff spare parts.

Product Details

Brand
STAUFF
Pros
Ribbed inner surface with pre-load
Unit
Set
BWidth
37 mm
Colour
Black
CHeight
27 mm
Details
Good UV resistance Rounded edges
Version
Single complete
Benefits
Long service life Prevents damage and injury
Diameter
0.472-0.472 Inch
Includes
Each clamp consists of: 2 halves Cover plate Bottom plate Suitable bolts
Material
Polypropylene
Group code
1
Properties
Ribbed inner surface with pre-load
Bolt length
30 mm
DIN standard
3015/1
Holes spacing
20 mm
Number of bolts
2
Product details
Ribbed inner surface with pre-tensioning Good UV resistance Material: Polypropylene Rounded edges Polypropylene P001: 1 clamp P005: 5 clamps P025: 25 clamps
Content in sale unit
5 pcs
Mounting plate width
36 mm
Max. working temperature
90 °C
Min. working temperature
-30 °C
Mounting thread diameter
M6
Manufacturer
STAUFF

Similar items you might like

  • Stauff

    Stauff - RS112P025 - Stauff Pipe Clamp Complete 12 mm (25)

    Stauff

    €34.25

  • Stauff

    Stauff - RS112Z - Stauff Aluminum Pipe Clamp Complete C1 12 mm

    Stauff

    €8.37

  • Stauff

    Stauff - RS112ZPA - Stauff Pipe Clamp Complete Heavy C1 12 mm PA

    Stauff

    €8.61

  • Stauff

    Stauff - RS112ZPP - Stauff Pipe Clamp Complete Heavy C1 12 mm PP

    Stauff

    €7.75

  • Stauff

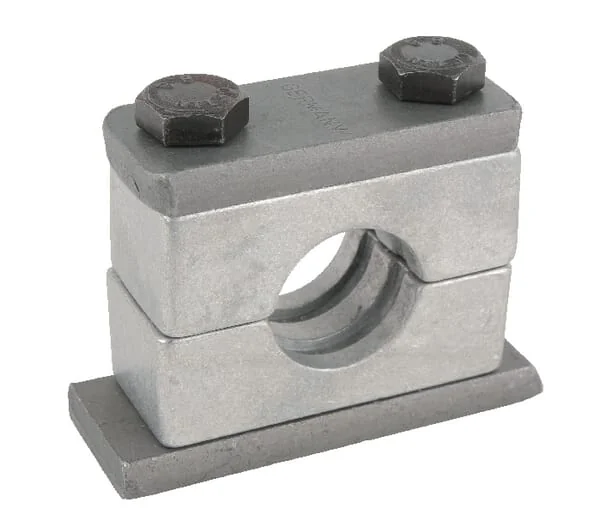

    Stauff - RS114Z - Stauff Aluminum Pipe Clamp Complete C1 14 mm
