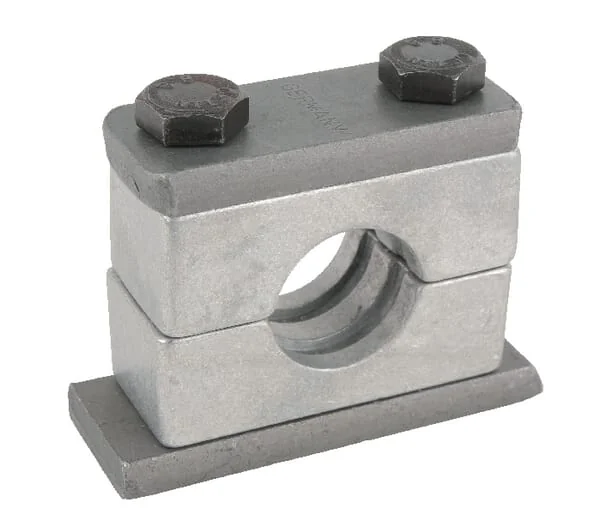

STAUFF - RS228Z - Tube Clamp Complete Heavy 28mm

STAUFF - RS228Z - Tube Clamp Complete Heavy 28mm

STAUFF - RS228Z - Tube Clamp Complete Heavy 28mm

STAUFF - RS228Z - Tube Clamp Complete Heavy 28mm

STAUFF - RS228Z - Tube Clamp Complete Heavy 28mm

STAUFF - RS228Z - Tube Clamp Complete Heavy 28mm

Number of products

In stock - ready to ship

Order now for delivery between 23 May and 27 May

Free shipping on orders over €60

Pay Securely with

STAUFF - RS228Z - Tube Clamp Complete Heavy 28mm

STAUFF - RS228Z - Tube Clamp Complete Heavy 28mm

€10.50

(Excl. VAT)

Price

(Excl. VAT)

€10.50

Number of products

Product Description

Ribbed inner surface with pre-tensioning Good UV resistance Material : Aluminium Rounded edges Polypropylene P001: 1 clamp P005: 5 clamps P025: 25 clamps

Stauff

Stauff specializes in hydraulic filtration, measurement, and connection systems for agricultural and forestry machinery. Their solutions optimize fluid cleanliness and system efficiency in tractors and implements. The brand is recognized for modular, easy-to-maintain components. Shop more than 515 genuine Stauff spare parts.

Product Details

Brand

Pros

High temperature resistance. Long lifespan

Unit

Each

BWidth

70 mm

CHeight

48 mm

Diameter

1.102-1.102 Inch

Includes

Each clamp consists of: 2 halves cover plate bottom plate Associated bolts

Material

Aluminium

Group code

2

Bolt length

60 mm

DIN standard

3015/2

Holes spacing

45 mm

Mounting plate width

86 mm

Max. working temperature

300 °C

Mounting thread diameter

M10

Manufacturer

STAUFF
