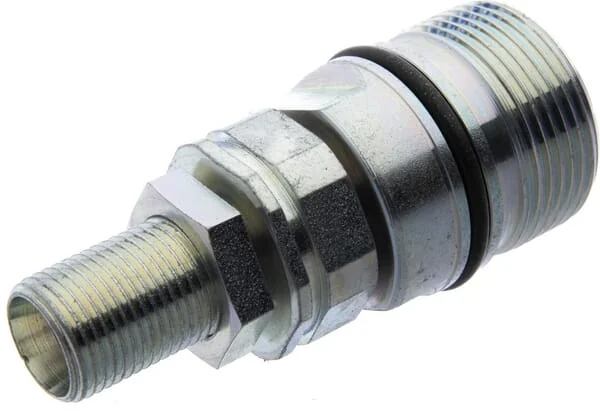

Stauff - SKSF10N16 - Quick Coupling F Hs08-1-N1016
Stauff - SKSF10N16 - Quick Coupling F Hs08-1-N1016
Stauff - SKSF10N16 - Quick Coupling F Hs08-1-N1016
Stauff - SKSF10N16 - Quick Coupling F Hs08-1-N1016

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping on orders over €60

Pay Securely with

Stauff - SKSF10N16 - Quick Coupling F Hs08-1-N1016

Stauff - SKSF10N16 - Quick Coupling F Hs08-1-N1016

€11.25

(Excl. VAT)

Price

(Excl. VAT)

€11.25

Stauff
Stauff specializes in hydraulic filtration, measurement, and connection systems for agricultural and forestry machinery. Their solutions optimize fluid cleanliness and system efficiency in tractors and implements. The brand is recognized for modular, easy-to-maintain components. Shop more than 515 genuine Stauff spare parts.

Product Details

Brand
Stauff
Unit
Each
Shape
Straight - 2 connection sides
Series
10L
Benefits
High operating pressure Prevents accidental release caused by vibration
Body size
3/8 Inch
Size code
BG 2
Properties
Robust Low level of pressure loss Locks on both sides
ISO standard
14541
Total length
77 mm
Seal material
Nitrile rubber [NBR] Teflon (PTFE)
Technical info
Coupling must be tightened as tight as possible Coupling only possible for pressures up to 50 bar
Application range
Construction machines Mineral oil-based fluids
Surface treatment
White passivated
Connection 2, type
Thread
Flow rate at 2 bar
45 l/min
Connection no 1 type
Thread
Max working pressure
450 BAR
Max working temperature
100 °C
Connection no 1 diameter
17,5 mm
Min. working temperature
-30 °C
Connectable under pressure
Yes
Connection 2, thread length
26 mm
Connection no 1 thread type
Metric
Connection no 1 wrench size
24.0 mm
Connection no 1 thread pitch
1.50 mm
Connection no 1 thread diameter
M16
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
Manufacturer
Stauff
