Stürmer - 3003020 - Bench Drill B23 Pro

SKU: sturmer-3003020

Stürmer - 3003020 - Bench Drill B23 Pro

€1,197.55€1,023.55 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,197.55

Brand
sturmer
Bore (mm)
Ø 25 / steel: Ø 20
Hole (mm)
Ø 25 steel: Ø 20
Reach (mm)
180
Bending Angle
45
Overhang (mm)
180
Spindle Drive
MK2
Rotation Range
Drilling table 360°
Speed (1/min.)
200 - 2440
Tilt Angle (°)
45
Engine Power (W)
750
T-Slot Size (mm)
12
Column Diameter (mm)
73
Safety Switch Rating
IP 54
Electrical Connection
400 V 3Ph~50
Table Dimensions (mm)
280 x 245
Rotational Speed Control
12
Dimensions L X W X H (mm)
680 x 350 x 1015
Electrical Connection (V)
400
Rotation Speed Regulation
12
Distance Spindle-Foot (mm)
618
Spindle Sleeve Stroke (mm)
80
Distance Spindle-Table (mm)
425
Safety Electrics Voltage (V DC)
24
Run-out Accuracy In Drill Quill (mm)
less than 0.02
Manufacturer
sturmer

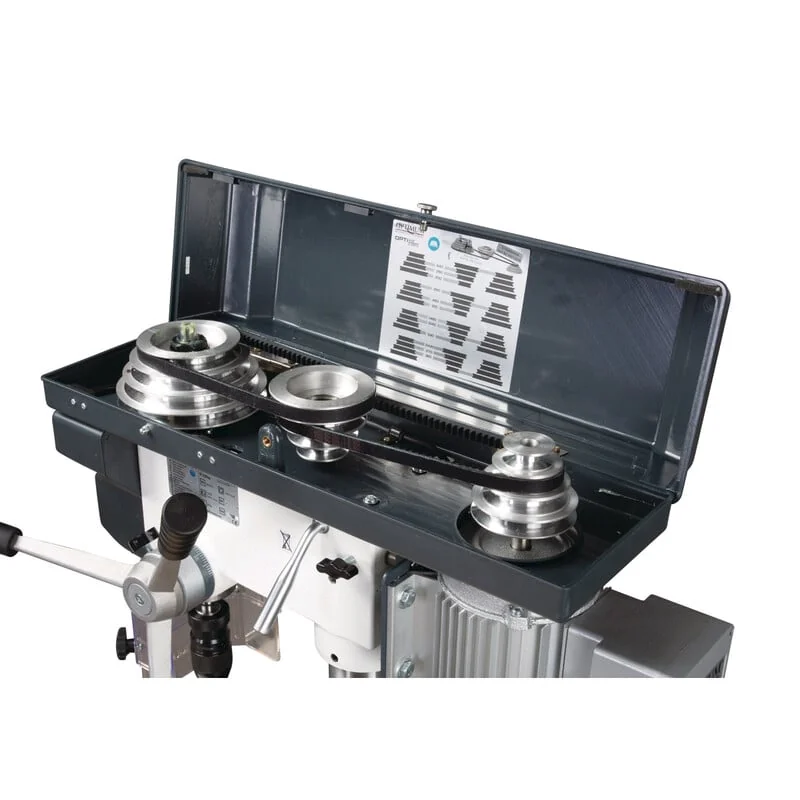

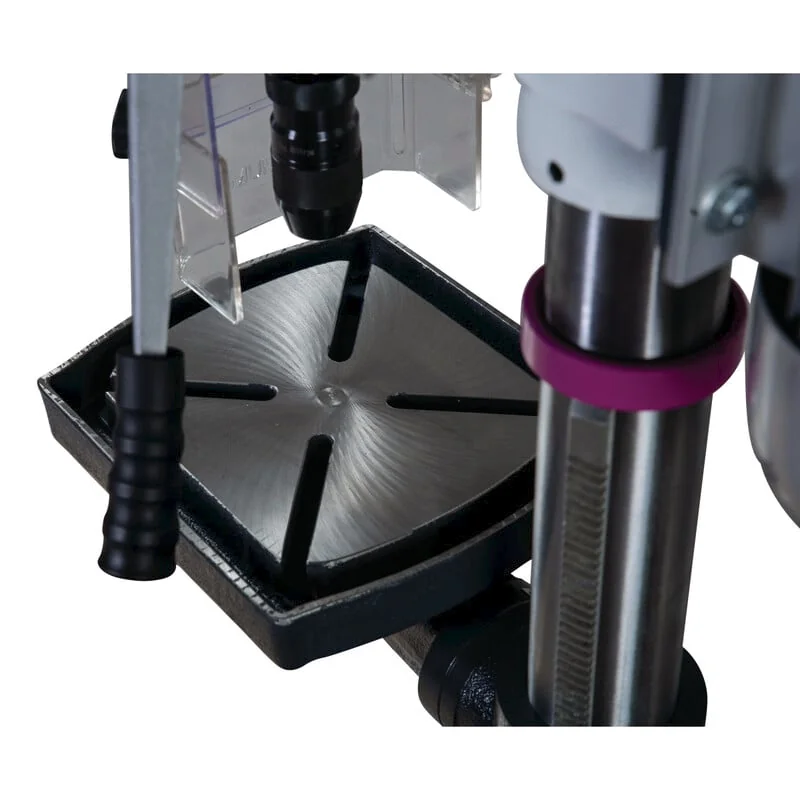

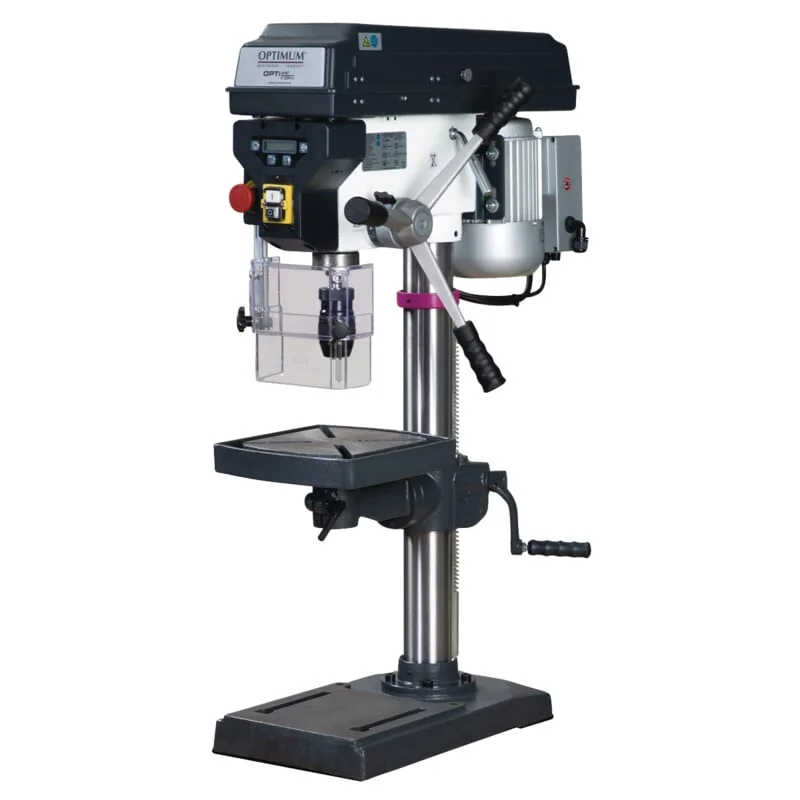

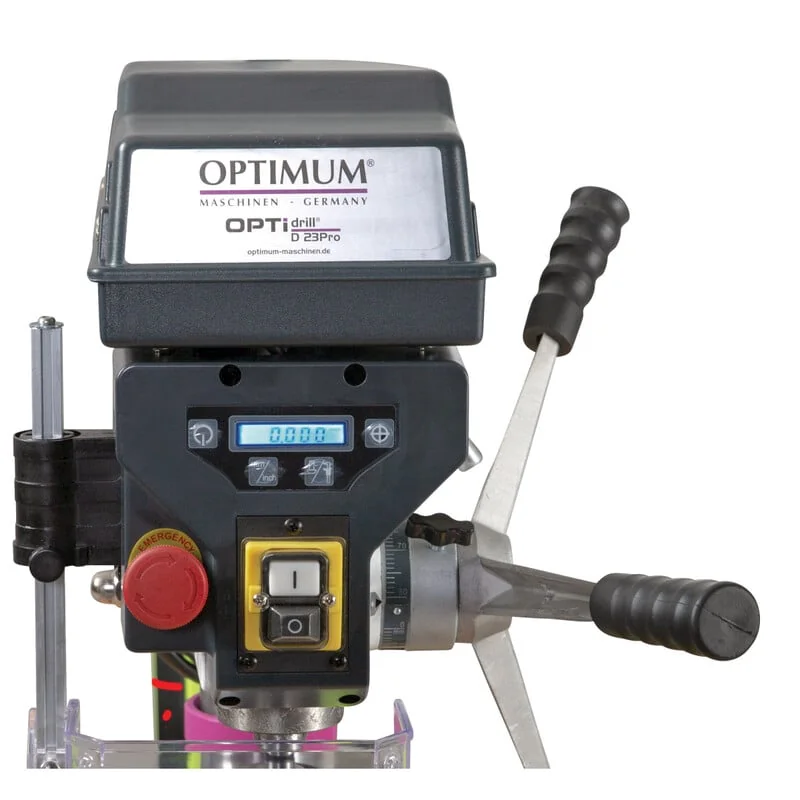

The Bench Drill B23 Pro is an industrial drilling machine with a V-belt drive, a safety switch, and integrated digital drill depth and speed displays. It features a precision spindle bore with ball bearings, a quick-release drill chuck, a drill depth stop, and a drill table with T-slots and a coolant channel.
