Suevia - 101.0317 - Heater

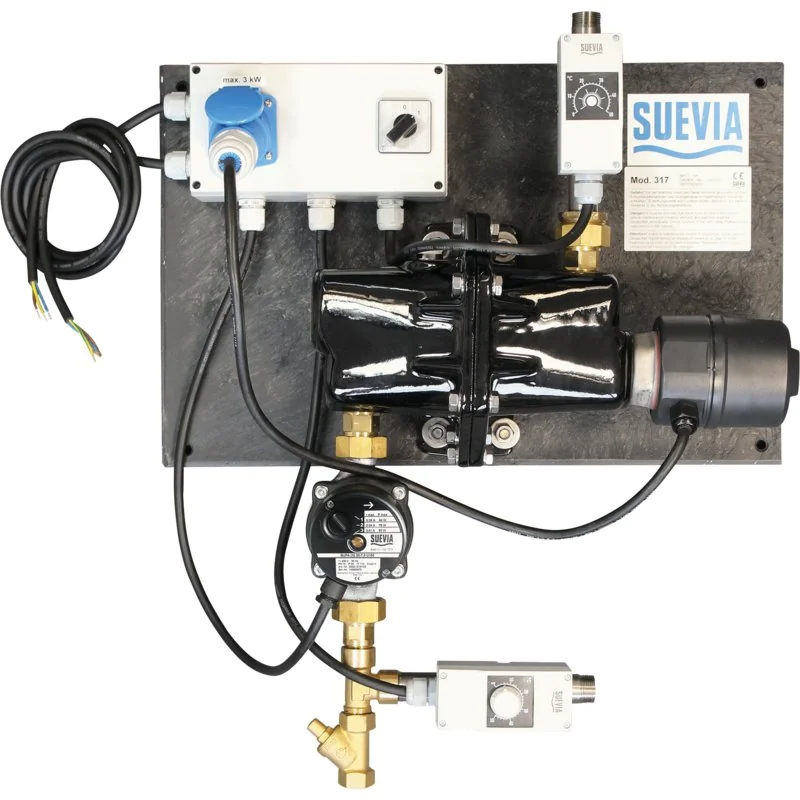

Heater with return temperature control Model 317 3.000 W, 230 V. Recommended for: Cattle, calves, horses, sheep, goats, pigs. For keeping water frost-free in insulated ring lines (½" or ¾") with a length of max. 200 m. Specially developed for installation in outdoor climate stables. The animals are reliably supplied with water even at sub-zero temperatures. The Model 317 heater is equipped with a heating element (230 V, 3.000 W) and a circulation pump with a stainless steel base (230 V, 93 W). The housing made of high-quality cast iron is enameled. The device is pre-assembled on a base plate. The water connections are designed in ¾". With return temperature control: The desired return temperature of the water is set at the return sensor, which is mounted on the return line. If the return temperature falls below the set value, the heating element is automatically switched on. The heating element has a built-in overheating protection (STB). Included in the scope of delivery are a vent, overpressure, non-return valve and a check flap. Two 30 mA residual current circuit breakers must be provided on site. These serve for separate protection of the pump and heating element.
