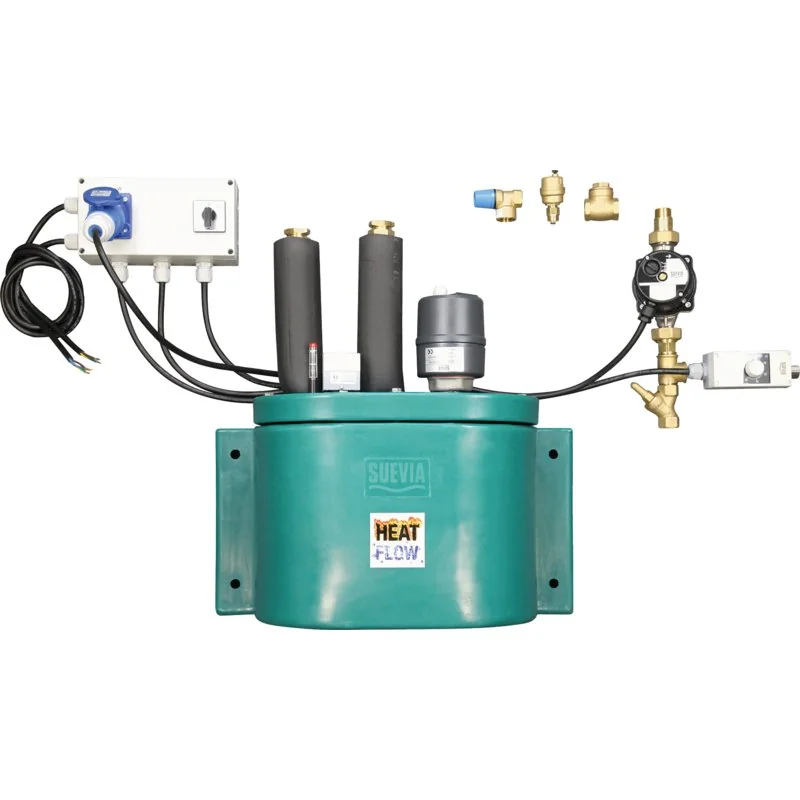

Suevia - 101.2280 - Heater

Heater with return temperature control HEATFLOW MINI, 3000 W, 230 V. Particularly suitable for water with high lime content. Recommended for: Cattle, horses, sheep, pigs. For keeping water frost-free in insulated ring lines up to max. 200 m (¾"). The HEATFLOW MINI heater is available with a heating capacity of 3 kW and is specially designed for installation in stables. 3000 W heating capacity, 93 W pump with stainless steel base. The heating element heats secondary water, which heats the drinking water through a stainless steel corrugated pipe. This results in maximum temperatures of 40 °C, and lime scale build-up is reduced to a minimum. Particularly suitable for keeping ring lines with highly calcareous water frost-free. With return temperature control: The desired return temperature of the water is set at the return sensor. If the return temperature falls below the set value, the heating is automatically switched on. The device is equipped with a circulation pump with a stainless steel base (230 V, 93 W). The heating element has a built-in overheating protection (STB). Included in the scope of delivery are a vent, overpressure, non-return valve and a check flap. Two 30 mA residual current circuit breakers must be provided on site. These serve for separate protection of the pump and heating element.
