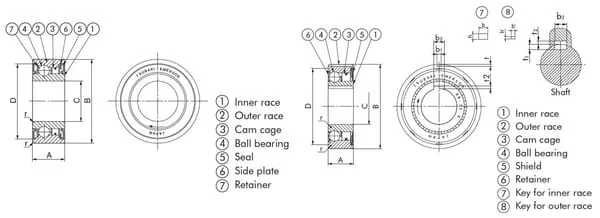

Tsubaki - BB202GD - Cam Clutch Bearing 20x47x19mm Tsubaki
Tsubaki - BB202GD - Cam Clutch Bearing 20x47x19mm Tsubaki
Tsubaki - BB202GD - Cam Clutch Bearing 20x47x19mm Tsubaki
Tsubaki - BB202GD - Cam Clutch Bearing 20x47x19mm Tsubaki
Tsubaki - BB202GD - Cam Clutch Bearing 20x47x19mm Tsubaki

In stock - ready to ship

Order now for delivery between 27 May and 30 May
Free shipping

Pay Securely with

Tsubaki - BB202GD - Cam Clutch Bearing 20x47x19mm Tsubaki

Tsubaki - BB202GD - Cam Clutch Bearing 20x47x19mm Tsubaki

€111.47

(Excl. VAT)

Price

(Excl. VAT)

€111.47

Tsubaki
Tsubaki manufactures high-performance chains and power transmission components for agricultural machinery. The brand specializes in durable roller chains, sprockets, and tensioners used in tractors and harvesting equipment. Its products are known for precision engineering and resistance to heavy loads in demanding farming conditions. Shop more than 330 genuine Tsubaki spare parts.

Product Details

Brand
Tsubaki
Unit
Each
Width
19 mm
Benefits
Prevents damage
Properties
Torque transmitted in one direction Freewheeling in opposite direction
Drag torque
0,055 N·m
Technical info
The arrow on the inner ring indicates the rotational direction in which the freewheel clutch locks.
Inside diameter
20 mm
Outside diameter
47 mm
Application range
Return stops Switching mechanisms
Max. working torque
61 N·m
Basic radial load static
4900 N
Basic radial load dynamic
8500 N
Inside diameter of outer ring
42,35 mm
Max. inner ring overrunning speed
3000 r/min
Max. outer ring overrunning speed
1600 r/min
Manufacturer
Tsubaki
