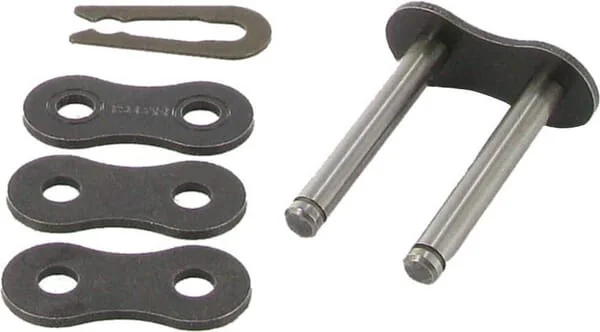

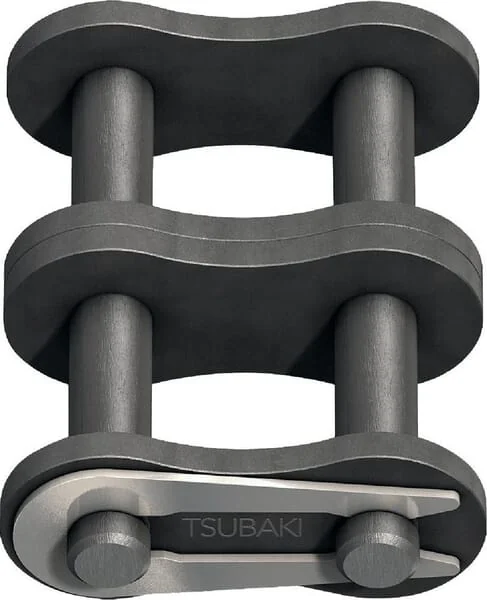

Tsubaki - RS12B2S - Connection Link Duplex 3/4x7/16
Tsubaki - RS12B2S - Connection Link Duplex 3/4x7/16
Tsubaki - RS12B2S - Connection Link Duplex 3/4x7/16
Tsubaki - RS12B2S - Connection Link Duplex 3/4x7/16
Tsubaki - RS12B2S - Connection Link Duplex 3/4x7/16

In stock - ready to ship

Order now for delivery between 16 May and 20 May
Free shipping on orders over €60

Pay Securely with

Tsubaki - RS12B2S - Connection Link Duplex 3/4x7/16

Tsubaki - RS12B2S - Connection Link Duplex 3/4x7/16

€9.71

(Excl. VAT)

Price

(Excl. VAT)

€9.71

Tsubaki
Tsubaki manufactures high-performance chains and power transmission components for agricultural machinery. The brand specializes in durable roller chains, sprockets, and tensioners used in tractors and harvesting equipment. Its products are known for precision engineering and resistance to heavy loads in demanding farming conditions. Shop more than 330 genuine Tsubaki spare parts.

Product Details

Brand
Tsubaki
Type
Duplex
Unit
Each
Pitch
3/4 Inch
Height
16,4 mm
Size L1
20,85 mm
Size L2
22,75 mm
Benefits
Offers 100% strength of basic chain
Pin length
45,9 mm
Properties
Straight (end) link up to and including RS16 with spring clip Curved (reducing) link with expansion pin
DIN standard
8187
Pin diameter
5,72 mm
Width inside
7/16 Inch
Size code ISO
12 B-2
Width outside
42 mm
Roller diameter
12,07 mm
Product category
Connection link
Width inner link
15,62 mm
Application range
Tsubaki duplex roller chain
Sections distance
19,46 mm
Thickness inner plate
1,8 mm
Thickness outer plate
1,8 mm
Manufacturer
Tsubaki
