Tsubaki - RS16B2 - Duplex Chain RS16B-2 1

SKU: tsubaki-rs16b2

Tsubaki - RS16B2 - Duplex Chain RS16B-2 1

€127.09

(excl. VAT)
RRP:€135.63
Save €8.54
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Price

(Excl. VAT)

€127.09

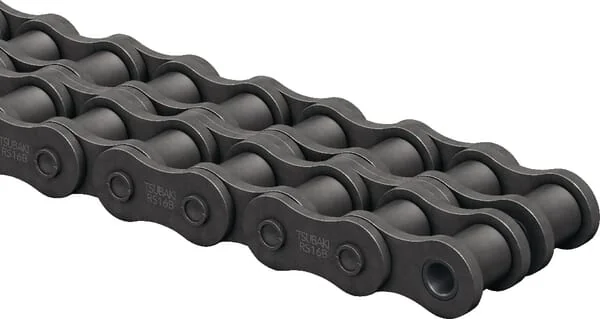

The Tsubaki RS16B-2 is a high-quality, genuine B-series duplex roller chain designed for robust industrial power transmission applications. Featuring a 25.40mm (1-inch) pitch, this double-strand chain offers superior strength and reliability. Key specifications include a roller diameter of 15.88mm, an inner plate width of 17.02mm, and a pin diameter of 8.28mm. With an average tensile strength of 90.0 kN and a breaking load of 100.0 kN, it ensures durable performance. The chain has a weight of 4.00 kg per meter, making it suitable for demanding machinery.
Tsubaki
Tsubaki, officially Tsubakimoto Chain Co., is a global leader in power transmission products, with a rich history dating back to its founding in 1917 in Japan. Headquartered in Osaka, the company has grown from a manufacturer of bicycle chains to a diversified industrial giant. Tsubaki is renowned for its commitment to innovation and quality in mechanical power transmission and motion control. The brand's extensive product range includes various types of industrial chains, sprockets, power transmission units, and other components. In the agricultural sector, Tsubaki chains are widely utilized in machinery such as combine harvesters, balers, and tractors, where their durability and high performance under demanding conditions are critical. The company's focus on precision engineering ensures reliable operation and extended service life for its products. Partao offers a selection of Tsubaki spare parts to keep your machinery running smoothly. Our top categories for this brand include Bearing Housings, Chain Links, Control Modules, Hand Tools, and Other Bearings. Over 330 genuine Tsubaki spare parts are available at Partao. Agricultural professionals and equipment manufacturers worldwide rely on Tsubaki for robust and efficient power transmission solutions. The brand's components are particularly valued in applications requiring high strength and resistance to wear, such as in harvesting equipment operating in challenging field conditions. Its global presence ensures widespread availability and support for its product lines.

Brand
Part Numbers
rs16b2
Type
Duplex
Unit
Metre
Weight
5,22 kg/m

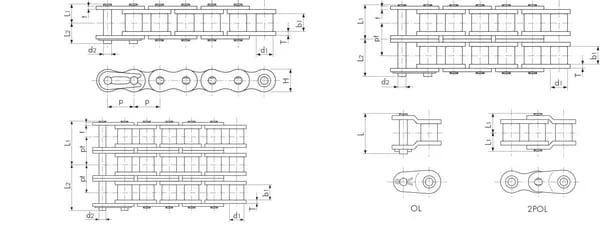

pPitch
1 Inch
Details
Seamless bush (RS16-RS24 with lubrication grooves) Ring-coined reinforced end link
Size L1
33,55 mm
Size L2
35,75 mm
gHeight
20,8 mm
Benefits
Long service life Chain for highest loads
Pin length
75,2 mm
Properties
With GT4 Winner technology Round riveted pins Starts and ends with an inner link
DIN standard
8187
Qty. Rounding
0.01
Size code ISO
16 B-2
Width outside
67,9 mm
Technical info
Chains are supplied in desired length (max. 5 m).
b1Width inside
17,02 mm
d2Pin diameter
8,28 mm
Product category
Roller chain
Application range
Drive chain for chain power transmissions Rotary tillers Loader wagons Forage harvesters Sugarbeet harvesters
d1Roller diameter
15,88 mm
Min. breaking load
143000 N
b2Width inner link
25,45 mm
eSections distance
31,88 mm
Thickness inner plate
4 mm
Thickness outer plate
3,2 mm
Bearing working surface
4,21 cm²
EAN
8718472781373
Manufacturer
Tsubaki
