VdL - BP90110 - Clamp 90/110

VdL - BP90110 - Clamp 90/110

VdL - BP90110 - Clamp 90/110

VdL - BP90110 - Clamp 90/110

VdL - BP90110 - Clamp 90/110

VdL - BP90110 - Clamp 90/110

Number of products

In stock - ready to ship

Order now for delivery between 30 March and 2 April

Free shipping on orders over €60

Pay Securely with

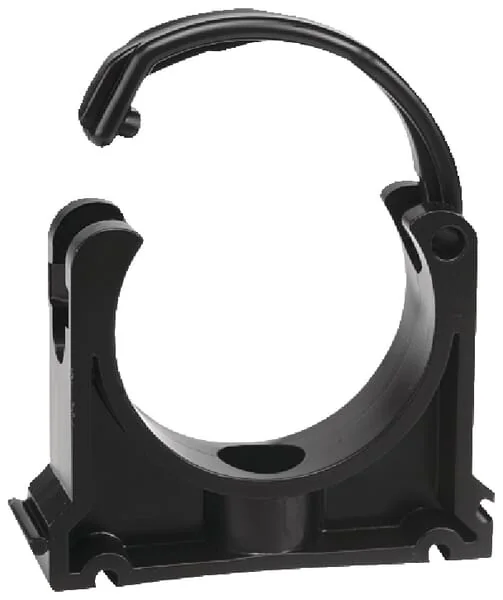

VdL - BP90110 - Clamp 90/110

VdL - BP90110 - Clamp 90/110

€5.69

(Excl. VAT)

Price

(Excl. VAT)

€5.69

Number of products

Product Details

Brand

Ean

8717284004700

Unit

Each

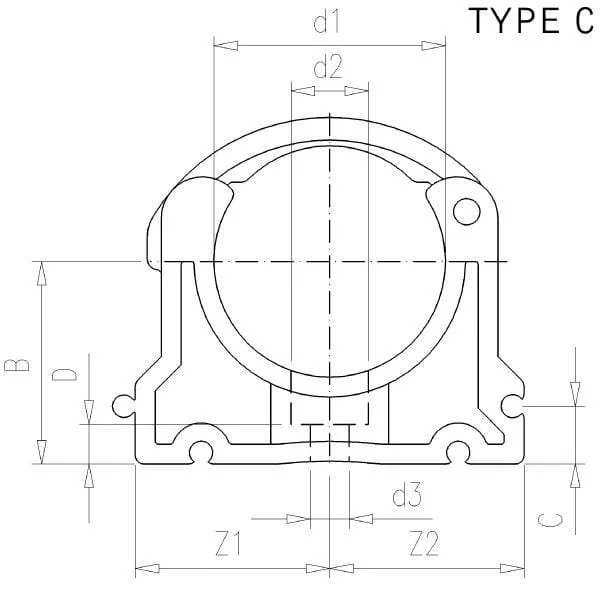

Body type

C

EThickness

28 mm

Properties

Excellent fit Visual top quality Combinable with pipe clamp fill blocks

d1Pipe diameter

90 mm

Max. working diameter

110 mm

Min. working diameter

90 mm

DMounting holes length

10 mm

d2Max. screw head diameter

17 mm

Z1Centre to left end distance

64,5 mm

Z2Centre to right end distance

64,5 mm

BBottom to pipe centre distance

65 mm

d3Mounting hole diameter (width)

8,5 mm

CBottom to connection part distance

10 mm

Manufacturer

VdL
