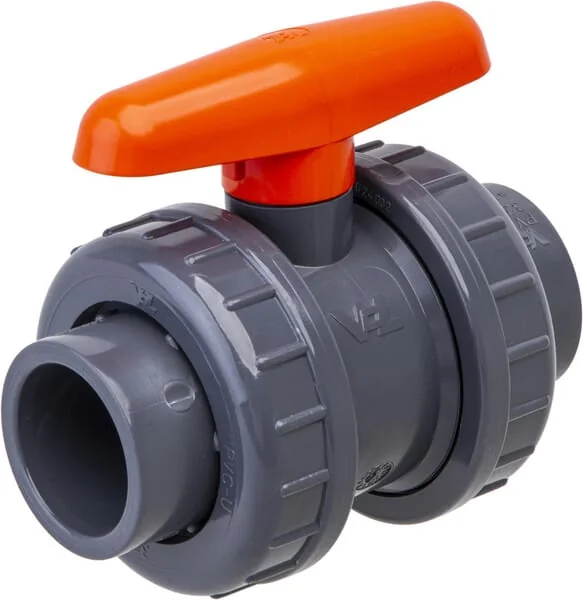

VdL - KS032032PVC - PVC Lock Valve Type: DIL 32x32
VdL - KS032032PVC - PVC Lock Valve Type: DIL 32x32
VdL - KS032032PVC - PVC Lock Valve Type: DIL 32x32
VdL - KS032032PVC - PVC Lock Valve Type: DIL 32x32
VdL - KS032032PVC - PVC Lock Valve Type: DIL 32x32
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

VdL - KS032032PVC - PVC Lock Valve Type: DIL 32x32

VdL - KS032032PVC - PVC Lock Valve Type: DIL 32x32

€16.32

(Excl. VAT)

Price

(Excl. VAT)

€16.32

Product Description

Application: PVC-U fittings are not suitable for compressed air lines! Properties: Union nut on both sides Radially expandable Ball secured against flushing Seals made from EPDM
VDL

Product Details

Brand
VdL
Type
Manual valve
Unit
Each
Properties
Visual top quality Excellent fit Double sided – flush-out secured Ball valves are individually tested for leakage Seals are available in EPDM and FPM Union nut on both sides Radially expandable Ball secured against flushing

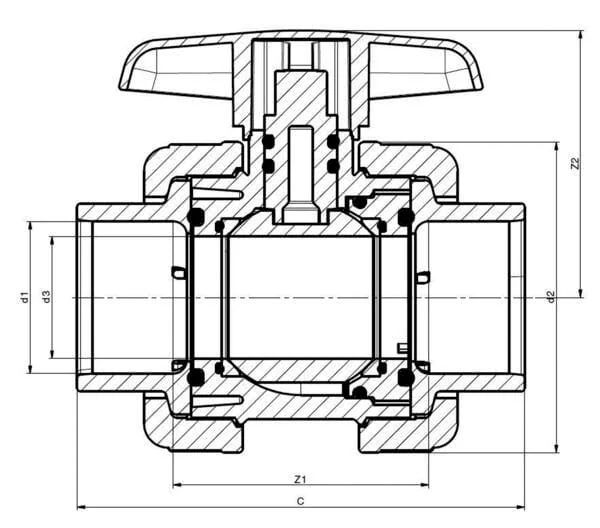

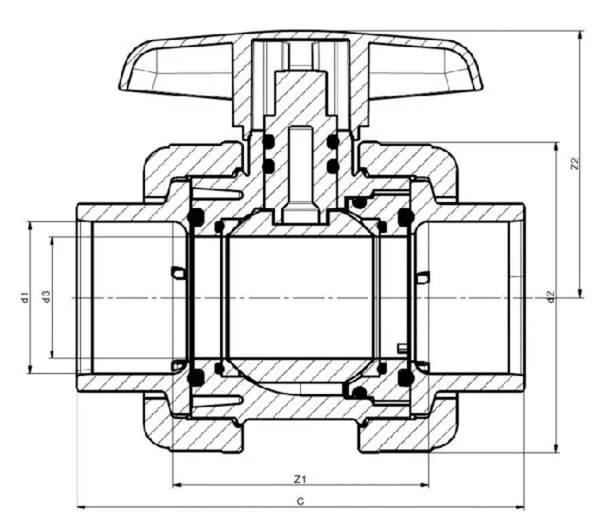

CTotal length
108 mm
Connection type
Glued
Number of ports
2
Housing material
PVC-U
d2Housing height
73 mm
Application range
PVC-U fittings are not suitable for compressed air lines!
Connection diameter
32 mm
Number of positions
2
Max working pressure
16 BAR
Z1Installation length
63 mm
Nominal inner diameter
25 mm
Manufacturer
VdL
