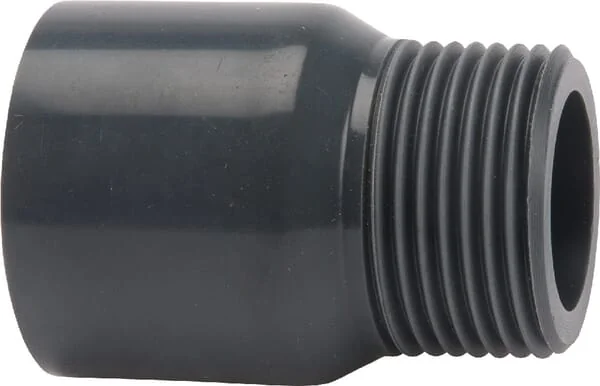

VdL - V140145 - Adaptor Nipple 110 x 3"
VdL - V140145 - Adaptor Nipple 110 x 3"
VdL - V140145 - Adaptor Nipple 110 x 3"
VdL - V140145 - Adaptor Nipple 110 x 3"

In stock - ready to ship

Order now for delivery between 7 May and 11 May
Free shipping on orders over €60

Pay Securely with

VdL - V140145 - Adaptor Nipple 110 x 3"

VdL - V140145 - Adaptor Nipple 110 x 3"

€18.92

(Excl. VAT)

Price

(Excl. VAT)

€18.92

Product Details

Brand
VdL
Unit
Each
Shape
Straight - 2 connection sides
Weight
456 g
Material
PVC-U
Properties
Visual top quality Excellent fit Strengthening in the neck radius Position marks on the product Products tested at 4.2x nominal pressure The tolerances, pressure resistance and visual quality meet the highest requirements in the market
EN standard
1452-3
ISO standard
7 228 1452-3
CPipe diameter
110 mm
Application range
PVC-U fittings are not suitable for compressed air lines!
Connection 2, type
Thread
Connection no 1 type
Glued
Max working pressure
16 BAR
ZConnections distance
40 mm
Connection 2, thread type
BSP
D1Connection no 1 diameter
110 mm
DConnection 2, thread length
40 mm
BConnection no 1 thread length
61 mm
D3Connection 2, thread diameter
3 Inch
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Female
Manufacturer
VdL

Similar items you might like

  • VDL

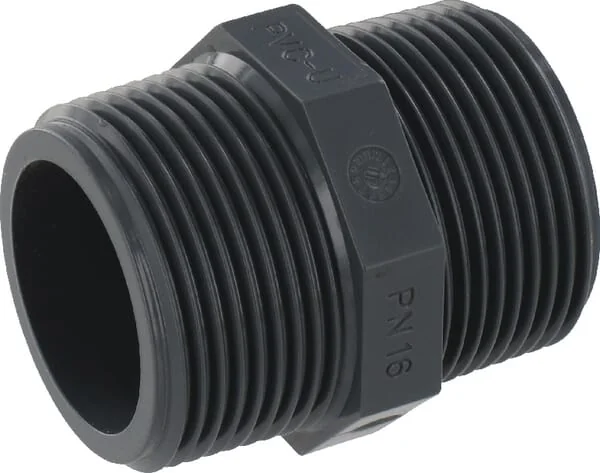

    VdL - V335045 - Nipple 2x M 3/8"
