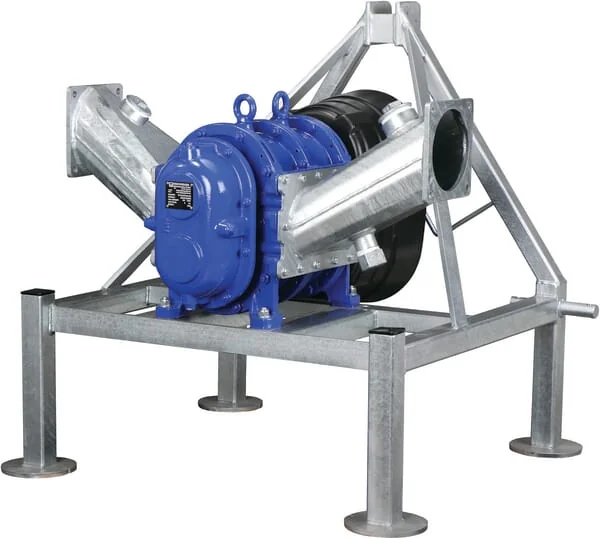

Vogelsang - APK0000192 - Rotary Lobe Pump R136-350S + Frame
Vogelsang - APK0000192 - Rotary Lobe Pump R136-350S + Frame
Vogelsang - APK0000192 - Rotary Lobe Pump R136-350S + Frame
Vogelsang - APK0000192 - Rotary Lobe Pump R136-350S + Frame
Vogelsang - APK0000192 - Rotary Lobe Pump R136-350S + Frame
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Vogelsang - APK0000192 - Rotary Lobe Pump R136-350S + Frame

Vogelsang - APK0000192 - Rotary Lobe Pump R136-350S + Frame

€8,994.26

(Excl. VAT)

Price

(Excl. VAT)

€8,994.26

Vogelsang
Vogelsang manufactures high-performance agricultural machinery, focusing on slurry and manure handling systems. The brand is known for its innovative pump technology and separation equipment, which enhance nutrient management and environmental sustainability. Its solutions are widely used in livestock farming and biogas production. Shop more than 452 genuine Vogelsang spare parts.

Product Details

Brand
Vogelsang
DN
150 mm
a.
822 mm
b.
340 mm
Unit
Each
Weight
199 kg
Benefits
Long service life
Stroke v
5,06 l
Flow max.
4100 l/min
Length L1
220 mm
Length L2
441 mm
Properties
Greasable shaft seals Stored on both sides Rotary lobes material: SBR70 With steel protective plates Self-priming up to 7,5m (25ft) Can be opperated in both flow directions Ensures running with low pulsations
Consists of
Rotary lobe pump Zinc-plated three point frame Drive shaft (1 3/8" 6-piece for tractor drive) with overload safety device PTO protection cap 2 connection tubes with flanges
Drive shaft
2x 1 3/8" 6-pieces, for tractor drive
Torque max.
655 N·m
Oil capacity
1,5 l
Pressure max.
5 BAR
Pump capacity
230 m³/h
Rotation max.
650 r/min
Application range
Particularly well suited as a liquid manure pump for the farm
Technical drawing
GBO.018
Flange diameter (in)
6 Inch
Manufacturer
Vogelsang
