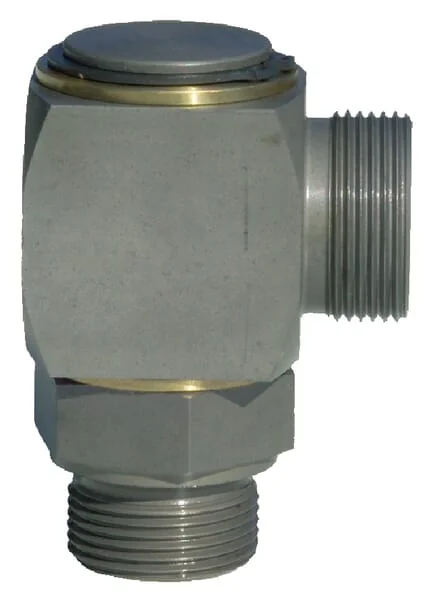

Voss - DGWEV8SM14 - Rotary Coupling 8S M14

Voss - DGWEV8SM14 - Rotary Coupling 8S M14

Voss - DGWEV8SM14 - Rotary Coupling 8S M14

Voss - DGWEV8SM14 - Rotary Coupling 8S M14

Voss - DGWEV8SM14 - Rotary Coupling 8S M14

Voss - DGWEV8SM14 - Rotary Coupling 8S M14

Number of products

In stock - ready to ship

Order now for delivery between 20 May and 23 May

Free shipping on orders over €60

Pay Securely with

Voss - DGWEV8SM14 - Rotary Coupling 8S M14

Voss - DGWEV8SM14 - Rotary Coupling 8S M14

€45.47

(Excl. VAT)

Price

(Excl. VAT)

€45.47

Number of products

Product Description

2S cutting ring- Optimum cutting ring connection and functionality Multiple corrosion resistance Can rotate while pressurised- Hydraulic hose Hydraulic pipes For slow rotation or swivelling only

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

2S cutting ring

Unit

Each

Angle

90 °

Shape

Elbow - 2 connection sides

Series

8S

L1Length

47 mm

DIN standard

2401 2353 228 3852 259

Pipe diameter

8 mm

Surface treatment

Zinc, Nickel-plated

Connection 2, type

Thread

Connection no 1 type

Thread

Max working pressure

400 BAR

LConnections distance

18,5 mm

Connection 2, thread pitch

1.50 mm

S1Connection no 1 hex size

27 mm

S2Connection 2, wrench size

19.0 mm

Connection no 1 thread pitch

1.50 mm

Connection 2, thread diameter

M14

S3Connection no 1 wrench size

22.0 mm

KConnection no 1 thread length

12 mm

Connection no 1 thread diameter

M16

L3Connection centre to insert distance

26,5 mm

L2Connection no 1 center to end distance

33 mm

Manufacturer

Voss
