Voss - EGESD14SM20WD - Coupling 14S M20
Voss - EGESD14SM20WD - Coupling 14S M20
Voss - EGESD14SM20WD - Coupling 14S M20
Voss - EGESD14SM20WD - Coupling 14S M20
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

Voss - EGESD14SM20WD - Coupling 14S M20

Voss - EGESD14SM20WD - Coupling 14S M20

€7.16

(Excl. VAT)

Price

(Excl. VAT)

€7.16

Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Series
14S
DIN standard
2401
Pipe diameter
14 mm
Seal material
Nitrile rubber [NBR]
Inside diameter
9 mm
Surface treatment
Zinc, Nickel-plated
Connection 2, type
Swivel nut
Connection no 1 type
Seal ring

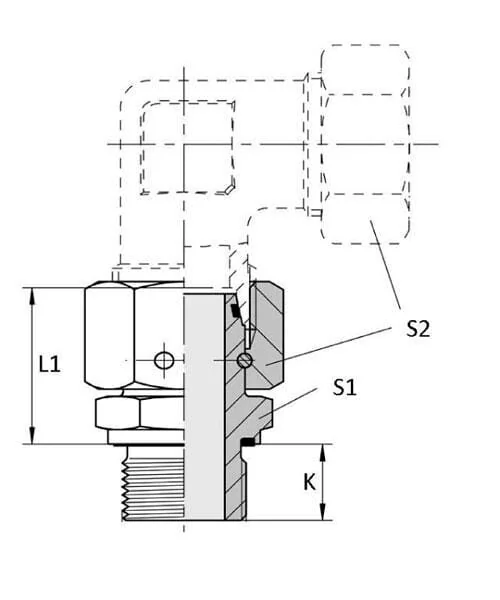

Max working pressure
630 BAR
Max. tightening torque
130 N·m
KConnection no 1 length
14 mm
Connection no 1 diameter
14 mm
Connection no 1 hex size
25,9 mm
Connection 2, thread type
Metric
Connection 2, thread pitch
1.50 mm
Connection no 1 thread type
Metric
S2Connection 2, wrench size
27.0 mm
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
M22
S1Connection no 1 wrench size
27.0 mm
Connection no 1 thread diameter
M20
Connection 2, type - male/female
Female
Connection no 1 type - male/female
Male
L1Connection 2, centre to end distance
36,5 mm
Manufacturer
Voss
