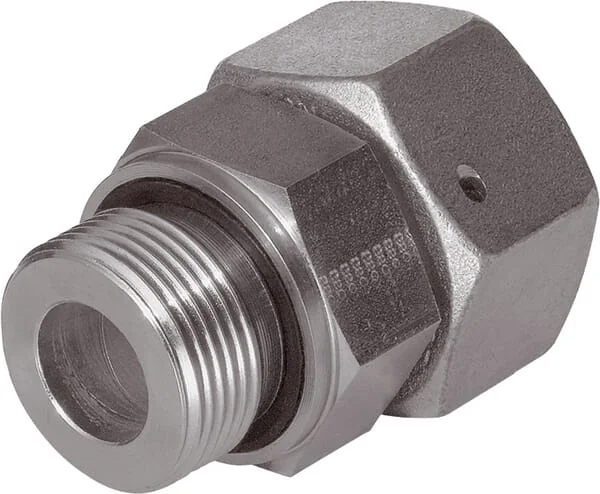

VOSS - EGESD30SR114WD - Coupling 30s - 1 1/4bsp

OEM Quality

SKU: voss-egesd30sr114wd

VOSS - EGESD30SR114WD - Coupling 30s - 1 1/4bsp

€20.88€17.85 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€20.88

Brand
Voss
Part Numbers
egesd30sr114wd
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Series
30S
Cone angle
24 °
Pipe diameter
30 mm
Inside diameter
23 mm
Product details
Pre-assembled with O-ring Optimal cutting ring connection and functionality Multiple corrosion resistance Hydraulic hose Hydraulic pipes Viton seal available on request
Surface treatment
Zinc, Nickel-plated
Connection 2, type
Thread
Connection no 1 type
Cutting ring
Max working pressure
420 BAR
Max. tightening torque
500 N·m
KConnection no 1 length
20 mm
Connection no 1 diameter
30 mm
Connection no 1 hex size
49,9 mm
Connection 2, thread type
BSP
Connection no 1 thread type
BSPP
S2Connection 2, wrench size
50.0 mm
Connection no 1 thread pitch
2.00 mm
Connection 2, thread diameter
1-1/4 Inch
Connection no 1 thread length
20 mm
S1Connection no 1 wrench size
50.0 mm
Connection 2, threads per inch
11
Connection no 1 thread diameter
M42
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Female
L1Connection 2, centre to end distance
51 mm
Manufacturer
Voss

Pre-assembled with O-ring Optimal cutting ring connection and functionality Multiple corrosion resistance Hydraulic hose Hydraulic pipes Viton seal available on request
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,648 genuine Voss spare parts.
