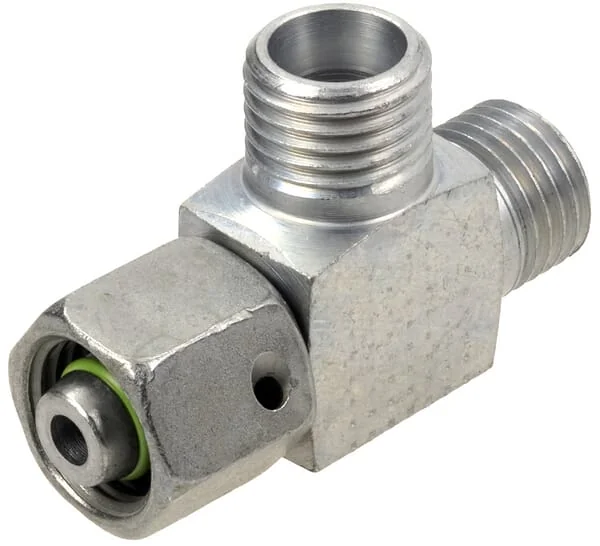

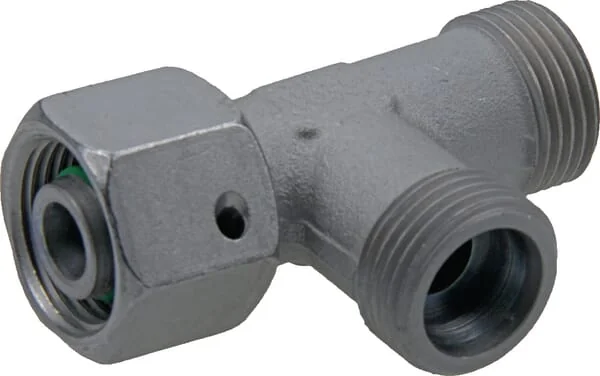

Voss - ELSD12S - Swivel T-Connector F-M-M 12S
Voss - ELSD12S - Swivel T-Connector F-M-M 12S
Voss - ELSD12S - Swivel T-Connector F-M-M 12S
Voss - ELSD12S - Swivel T-Connector F-M-M 12S
Voss - ELSD12S - Swivel T-Connector F-M-M 12S

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping on orders over €60

Pay Securely with

Voss - ELSD12S - Swivel T-Connector F-M-M 12S

Voss - ELSD12S - Swivel T-Connector F-M-M 12S

€8.83

(Excl. VAT)

Price

(Excl. VAT)

€8.83

Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
2S cutting ring
Unit
Each
Shape
Tee (T) - 3 connections
Series
S
Includes
pre-assembled gland
DIN standard
2353 3865 2401
Pipe diameter
12 mm

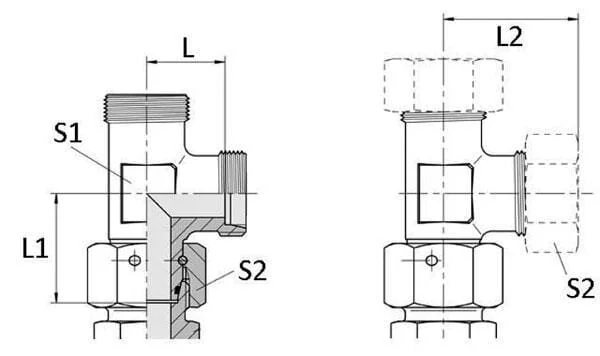

S1Body height
17 mm
Seal material
Nitrile rubber [NBR]
Inside diameter
8,99 mm8 mm
Surface treatment
Zinc Nickel
Connection 2, type
Thread
Connection 3, type
Swivel nut
Connection 3, length
48
Connection no 1 type
Thread
Max working pressure
630 BAR
Sealing ring thickness
1,5 mm
Connection 2, thread type
Metric
Connection 3, thread type
Metric
Connection 2, thread pitch
1.50 mm
Connection 3, thread pitch
1.50 mm
Connection no 1 thread type
Metric
S2Connection 2, wrench size
24.0 mm
Connection no 1 thread pitch
1.50 mm
Sealing ring inside diameter
10 mm
Connection 2, thread diameter
M20
Connection 3, thread diameter
M20
S2Connection no 1 wrench size
24.0 mm
Connection no 1 thread diameter
M20
Connection 2, type - male/female
Male
Connection 3, type - male/female
Female
Connection no 1 type - male/female
Male
LConnection 3 centre to end distance
21,5 mm
L1Connection 2, centre to end distance
31 mm
L2Connection no 1 center to end distance
38 mm
Manufacturer
Voss
