Voss - EMASD10SR12 - Voss Measuring point coupling

OEM Quality

SKU: voss-emasd10sr12

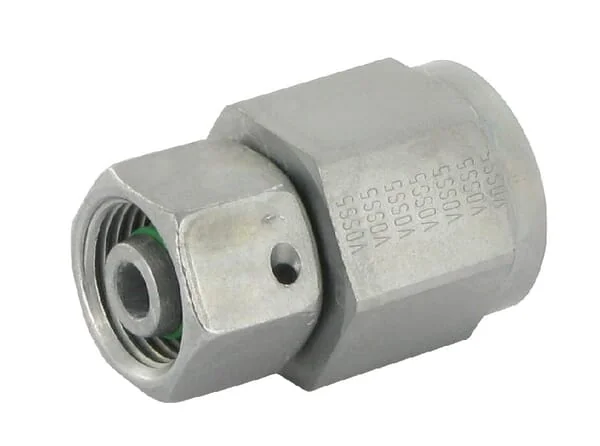

Voss - EMASD10SR12 - Voss Measuring point coupling

€9.52€8.14 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€9.52

Brand
Voss
Part Numbers
EMASD10SR12
Pros
Create a pressure gauge connection at any desired point in a hydraulic system.
Unit
Each
Shape
Straight - 2 connection sides
Length
43,5 mm
Series
S
Material
Steel
DIN standard
3865
ISO standard
8434-1-S
Pipe diameter
10 mm
Inside diameter
6 mm
Product details
The seal ring for the pressure gauge is not supplied with the coupling. The seal ring is offered as an accessory. EMASD pressure gauge coupling with BSPP inner thread and swivelling cutting ring coupling.
Surface treatment
Zinc Nickel
Connection 2, type
Thread
Connection no 1 type
Swivel nut
Connections distance
5,2 mm
Max working pressure
630 BAR
Connection no 1 length
20 mm
Connection 2, thread type
BSPP
Connection 2, wrench size
27.0 mm
Connection no 1 thread type
Metric
Connection no 1 wrench size
22.0 mm
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
1/2 Inch
Connection 2, threads per inch
14
Connection no 1 thread diameter
M18
Connection 2, type - male/female
Female
Connection no 1 type - male/female
Female
Manufacturer
Voss

The seal ring for the pressure gauge is not supplied with the coupling. The seal ring is offered as an accessory. EMASD pressure gauge coupling with BSPP inner thread and swivelling cutting ring coupling.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,730 genuine Voss spare parts.
