Voss - EMASD12LR14 - Gauge Coupling 12L R1/4

Voss - EMASD12LR14 - Gauge Coupling 12L R1/4

Number of products

In stock - ready to ship

Order now for delivery between 22 May and 26 May

Free shipping on orders over €60

Pay Securely with

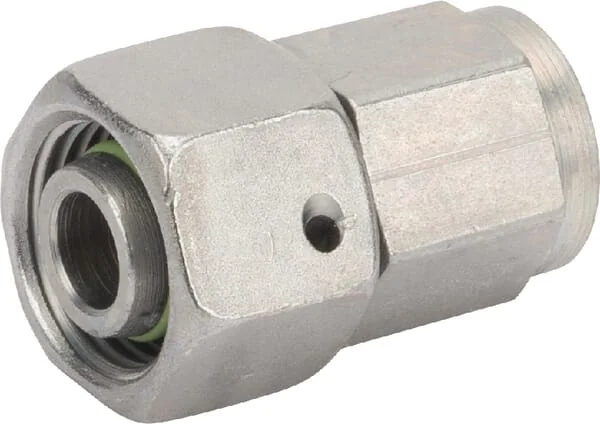

Voss - EMASD12LR14 - Gauge Coupling 12L R1/4

Voss - EMASD12LR14 - Gauge Coupling 12L R1/4

€4.95

(Excl. VAT)

Price

(Excl. VAT)

€4.95

Number of products

Product Description

The seal ring for the pressure gauge is not supplied with the coupling. The seal ring is offered as an accessory. EMASD pressure gauge coupling with BSPP inner thread and swivelling cutting ring coupling.

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Create a pressure gauge connection at any desired point in a hydraulic system.

Unit

Each

Shape

Straight - 2 connection sides

Length

36 mm

Series

L

Material

Steel

DIN standard

3865

ISO standard

8434-1-L

Pipe diameter

12 mm

Inside diameter

8 mm

Surface treatment

Zinc Nickel

Connection 2, type

Thread

Connection no 1 type

Swivel nut

Connections distance

4,6 mm

Max working pressure

315 BAR

Connection no 1 length

14,5 mm

Connection 2, thread type

BSPP

Connection 2, wrench size

19.0 mm

Connection no 1 thread type

Metric

Connection no 1 wrench size

22.0 mm

Connection no 1 thread pitch

1.50 mm

Connection 2, thread diameter

1/4 Inch

Connection 2, threads per inch

19

Connection no 1 thread diameter

M18

Connection 2, type - male/female

Female

Connection no 1 type - male/female

Female

Manufacturer

Voss
