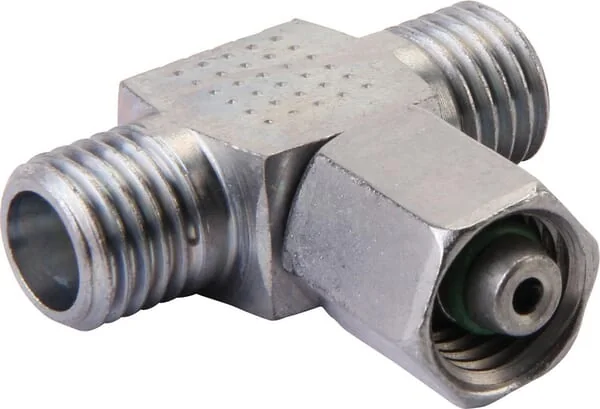

VOSS - ETSD22L - Adjustable T-fitting 22L

OEM Quality

SKU: voss-etsd22l

VOSS - ETSD22L - Adjustable T-fitting 22L

€21.54€18.41 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€21.54

Brand
Voss
Part Numbers
etsd22l
Pros
Reduced risk of leakage
Unit
Each
Shape
Tee (T) - 3 connections
Length
70 mm
Series
L
DIN standard
2353 3865 2401
Pipe diameter
22 mm
S1Body height
27 mm
Seal material
Nitrile rubber [NBR]
Inside diameter
19 mm17 mm
Product details
Pre-assembled with O-ring Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance Viton seal available on request
Surface treatment
Zinc Nickel
Connection 2, type
Thread
Connection 3, type
Swivel nut
Connection 3, length
55
Connection no 1 type
Thread
Max working pressure
250 BAR
Sealing ring thickness
2 mm
Connection 2, thread type
Metric
Connection 2, wrench size
27.0 mm
Connection 3, thread type
Metric
Connection 2, thread pitch
2.00 mm
Connection 3, thread pitch
2.00 mm
Connection no 1 thread type
Metric
Connection no 1 thread pitch
2.00 mm
Sealing ring inside diameter
20 mm
Connection 2, thread diameter
M30
Connection 3, thread diameter
M30
S2Connection no 1 wrench size
36.0 mm
Connection no 1 thread diameter
M30
Connection 2, type - male/female
Male
Connection 3, type - male/female
Female
Connection no 1 type - male/female
Male
LConnection 3 centre to end distance
27,5 mm
L2Connection 2, centre to end distance
38,5 mm
L1Connection no 1 center to end distance
44 mm
EAN
8719607068512
Manufacturer
Voss

Pre-assembled with O-ring Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance Viton seal available on request
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,648 genuine Voss spare parts.
