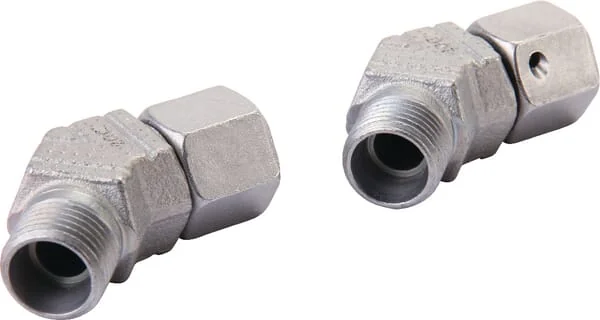

Voss - EVSD8S - Cutting Ring Connector 8s, 45°

Voss - EVSD8S - Cutting Ring Connector 8s, 45°

Voss - EVSD8S - Cutting Ring Connector 8s, 45°

Voss - EVSD8S - Cutting Ring Connector 8s, 45°

Voss - EVSD8S - Cutting Ring Connector 8s, 45°

Voss - EVSD8S - Cutting Ring Connector 8s, 45°

Number of products

In stock - ready to ship

Order now for delivery between 16 May and 20 May

Free shipping on orders over €60

Pay Securely with

Voss - EVSD8S - Cutting Ring Connector 8s, 45°

Voss - EVSD8S - Cutting Ring Connector 8s, 45°

€15.73

(Excl. VAT)

Price

(Excl. VAT)

€15.73

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Angle

45 °

Shape

Elbow - 2 connection sides

Length

16 mm

Series

8S

Includes

Body Pre-assembled gland nut and cutting ring Excluding separate gland nut and cutting ring

Cone angle

24 °

DIN standard

2401 2353

Pipe diameter

8 mm

Inside diameter

5 mm4 mm

Connection 2, type

O-ring cone

Connection no 1 type

Cutting ring

Max working pressure

630 BAR

Connection 2, diameter

8 mm

Connection no 1 diameter

8 mm

Connection 2, thread type

Metric

Connection 2, wrench size

19.0 mm

Connection 2, thread pitch

1.50 mm

Connection no 1 thread type

Metric

Connection no 1 wrench size

19.0 mm

Connection no 1 thread pitch

1.50 mm

Connection 2, thread diameter

M16

Connection no 1 thread diameter

M16

Connection 2, type - male/female

Female

Connection no 1 type - male/female

Male

Connection 2, centre to end distance

23 mm

Connection no 1 center to end distance

27,5 mm

Manufacturer

Voss
