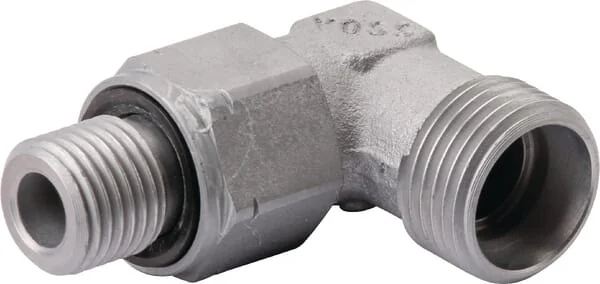

Voss - EWSC12LR38WD - Coupling+Counter Nut 12L R3/8
Voss - EWSC12LR38WD - Coupling+Counter Nut 12L R3/8
Voss - EWSC12LR38WD - Coupling+Counter Nut 12L R3/8
Voss - EWSC12LR38WD - Coupling+Counter Nut 12L R3/8

In stock - ready to ship

Order now for delivery between 13 July and 16 July
Free shipping on orders over €60

Pay Securely with

Voss - EWSC12LR38WD - Coupling+Counter Nut 12L R3/8

Voss - EWSC12LR38WD - Coupling+Counter Nut 12L R3/8

€10.70

(Excl. VAT)

Price

(Excl. VAT)

€10.70

Product Description

The VOSSForm Squeeze EWSC12LR38WD is a genuine VOSS screw-in stud coupling designed for hydraulic tube connections. This light series coupling features an O-ring and a counter nut, suitable for tubes with an outer diameter of 12 mm. It provides a G3/8 external thread connection and is constructed from durable galvanized steel, ensuring reliable performance in hydraulic systems with an operating pressure of up to 400 bar.
Voss
Voss is recognized as a supplier of high-quality industrial and agricultural components, with a particular focus on hydraulic systems and fluid power solutions. While specific founding details like year and founder are not widely publicized, the brand has established a presence in the market for its robust and reliable products. Its components are designed to meet the demanding requirements of various machinery and applications. The company's product portfolio primarily encompasses hydraulic fittings, hoses, and connection technology. These components are crucial for ensuring efficient and leak-free fluid transfer in complex systems. Voss also offers a range of hydraulic control valves, ball bearings, and various fasteners, catering to a broad spectrum of industrial and agricultural needs. The brand's focus on precision engineering ensures compatibility and performance across different equipment types. At Partao, you can find a comprehensive selection of Voss spare parts. Our top categories for this brand include Ball Bearings, Bolts & Fasteners, Hand Tools, Hoses & Fittings, and Hydraulic Control Valves. Over 22,632 genuine Voss spare parts are available at Partao. Equipment manufacturers and maintenance professionals often select Voss components for their durability and performance in challenging environments. The brand's solutions are frequently integrated into tractor attachments, irrigation systems, and other agricultural machinery where reliable fluid handling is critical. Its commitment to quality helps ensure the longevity and operational efficiency of the machinery it supports.

Product Details

Brand
Voss
Part Numbers
ewsc12lr38wd
Pros
Low risk of leakage
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Series
L
Material
Steel
Pipe diameter
12 mm
Seal material
Nitrile rubber [NBR]
Inside diameter
10 mm
Product details
Multiple corrosion resistance Counter coupling with male thread Adjustable direction The adjusted direction is fixed by lock nut
Surface treatment
Zinc Nickel
Connection 2, type
Seal ring
Connection no 1 type
Cutting ring
Max working pressure
315 BAR
Max. tightening torque
80 N·m
Connection no 1 diameter
12 mm
Connection no 1 hex size
21,9 mm
Connection 2, thread type
BSPP
Connection 2, wrench size
19.0 mm
Connection no 1 thread type
Metric
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
3/8 Inch
S1Connection no 1 wrench size
22.0 mm
Connection 2, threads per inch
19
KConnection no 1 thread length
12 mm
Connection no 1 thread diameter
M18
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
Connection 2, centre to end distance
41 mm
Connection no 1 center to end distance
26 mm
EAN
8719607031615
Manufacturer
Voss
