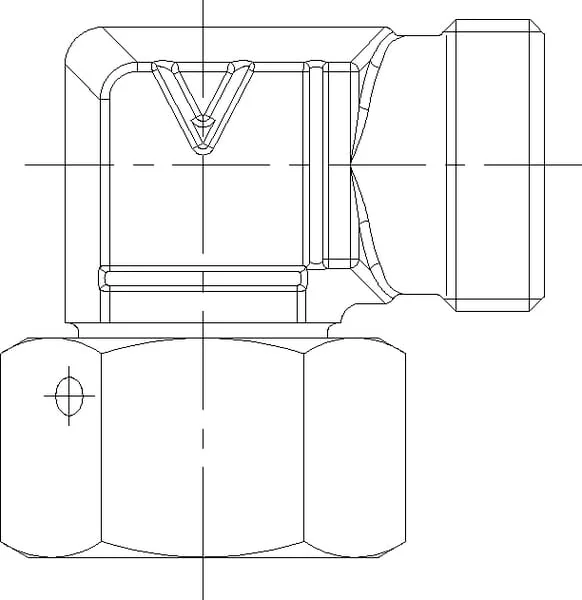

Voss - EWSD22L - Swivel Elbow Coupling 90° M30x2.0 22l

Voss - EWSD22L - Swivel Elbow Coupling 90° M30x2.0 22l

Voss - EWSD22L - Swivel Elbow Coupling 90° M30x2.0 22l

Voss - EWSD22L - Swivel Elbow Coupling 90° M30x2.0 22l

Voss - EWSD22L - Swivel Elbow Coupling 90° M30x2.0 22l

Voss - EWSD22L - Swivel Elbow Coupling 90° M30x2.0 22l

Number of products

In stock - ready to ship

Order now for delivery between 25 May and 28 May

Free shipping on orders over €60

Pay Securely with

Voss - EWSD22L - Swivel Elbow Coupling 90° M30x2.0 22l

Voss - EWSD22L - Swivel Elbow Coupling 90° M30x2.0 22l

€10.66

(Excl. VAT)

Price

(Excl. VAT)

€10.66

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Angle

90 °

Shape

Elbow - 2 connection sides

Length

27,5 mm

Series

22L

DIN standard

2401

Pipe diameter

22 mm

Inside diameter

19 mm17 mm

Connection 2, type

Cutting ring

Connection no 1 type

Swivel nut

Max working pressure

250 BAR

Seal material pipe side

Viton

Connection no 1 diameter

22 mm

Connection 2, thread type

Metric

Connection 2, wrench size

36.0 mm

Connection 2, thread pitch

2.00 mm

Connection no 1 thread type

Metric

Connection no 1 thread pitch

2.00 mm

Connection 2, thread diameter

M30

S2Connection no 1 wrench size

27.0 mm

Connection no 1 thread diameter

M30

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Female

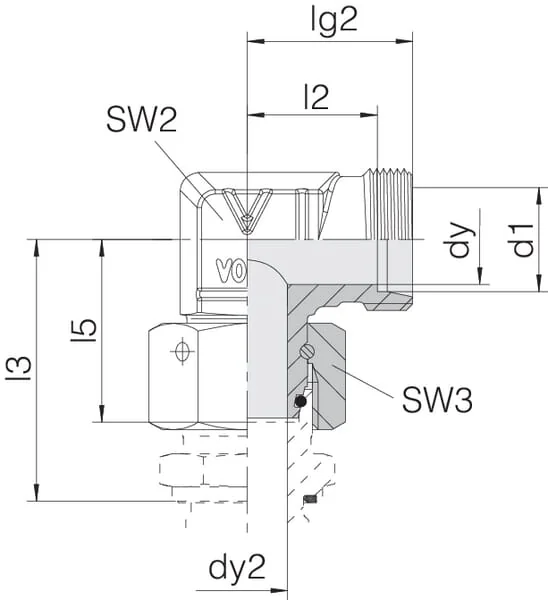

LConnection centre to insert distance

38,5 mm

Connection no 1 center to end distance

44 mm

L1Connection 2, centre to end distance

27,5 mm

Manufacturer

Voss

Similar items you might like

Voss - EWSD35L - Swivel Elbow Coupling 90° M45x2.0 35l
Voss
€20.76
Voss - EWSD38S - Swivel Elbow Coupling 90° M52x2.0 38s
Voss
€30.54
Voss - EWSD42L - Swivel Elbow Coupling 90° M52x2.0 42l
Voss
€30.15
Voss - EWSD6L - Swivel Elbow Coupling 90° M12x1.5 6l
Voss
€5.06
Voss - EWSD6S - Swivel Elbow Coupling 90° M14x1.5 6s
Voss
€5.28

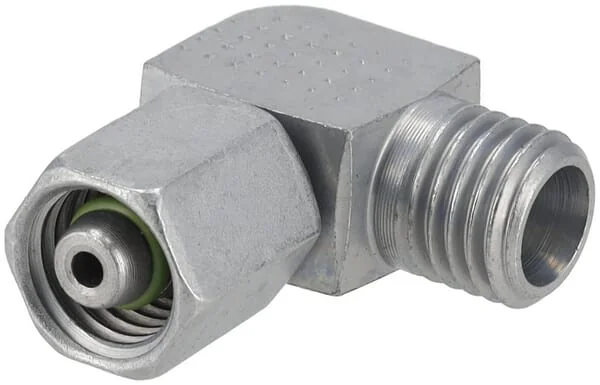

Voss - EWSD8L - Swivel Elbow Coupling 90° M14x1.5 8l
