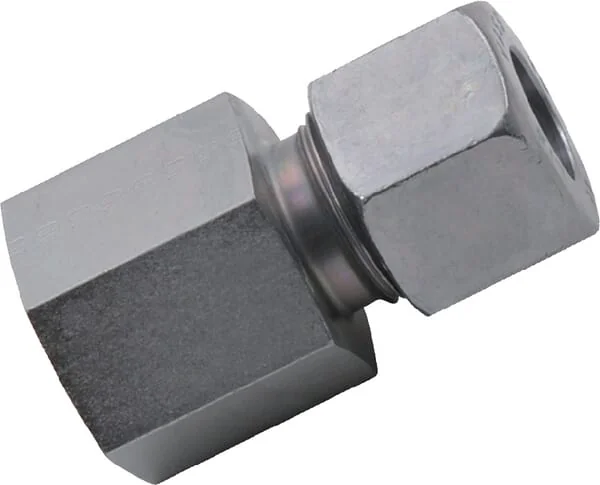

Voss - GAV12LR12 - Coupling 12L - 1/2 BSP
Voss - GAV12LR12 - Coupling 12L - 1/2 BSP
Voss - GAV12LR12 - Coupling 12L - 1/2 BSP
Voss - GAV12LR12 - Coupling 12L - 1/2 BSP

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping on orders over €60

Pay Securely with

Voss - GAV12LR12 - Coupling 12L - 1/2 BSP

Voss - GAV12LR12 - Coupling 12L - 1/2 BSP

€8.09

(Excl. VAT)

Price

(Excl. VAT)

€8.09

Product Description

The VOSS GAV12LR12 is a genuine VOSS hydraulic coupling, engineered for robust and leak-free connections in fluid power systems. It features a 12L light series tube connection for 12mm outer diameter tubes and a 1/2 BSP parallel thread. Constructed from high-quality steel, this coupling ensures durability and reliable performance in demanding agricultural, construction, and industrial applications.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
2S cutting ring
Unit
Each
Shape
Straight - 2 connection sides
Series
12L
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
12 mm
Product details
2S cutting ring Optimal cutting ring connection and functionality Multiple corrosion resistance
Surface treatment
Zinc Nickel
Connection 2, type
Thread
Connection no 1 type
Cutting ring
Max working pressure
250 BAR
Connection no 1 diameter
12 mm
Connection 2, thread type
BSP
Connection no 1 thread type
BSP
S2Connection 2, wrench size
22.0 mm
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
1/2 Inch
S1Connection no 1 wrench size
27.0 mm
Connection 2, threads per inch
14
Connection no 1 thread diameter
M18
Connection 2, type - male/female
Female
Connection no 1 type - male/female
Male
Connection 2, centre to end distance
31 mm
Connection no 1 center to end distance
45,5 mm
Manufacturer
Voss
