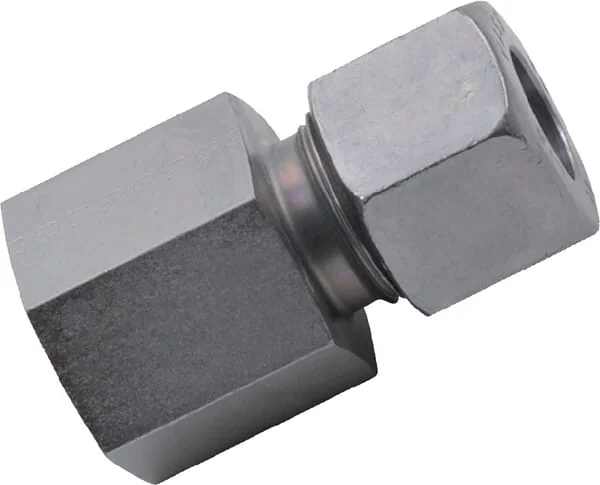

Voss - GAV28LR1 - Coupling 28L R1

Voss - GAV28LR1 - Coupling 28L R1

Voss - GAV28LR1 - Coupling 28L R1

Voss - GAV28LR1 - Coupling 28L R1

Number of products

In stock - ready to ship

Order now for delivery between 16 May and 20 May

Free shipping on orders over €60

Pay Securely with

Voss - GAV28LR1 - Coupling 28L R1

Voss - GAV28LR1 - Coupling 28L R1

€13.95

(Excl. VAT)

Price

(Excl. VAT)

€13.95

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

2S cutting ring

Unit

Each

Shape

Straight - 2 connection sides

Series

28L

DIN standard

2353 228 3852 2401

ISO standard

228

Pipe diameter

28 mm

Surface treatment

Zinc Nickel

Connection 2, type

Thread

Connection no 1 type

Cutting ring

Max working pressure

100 BAR

Connection no 1 diameter

28 mm

Connection 2, thread type

BSP

Connection no 1 thread type

BSP

S2Connection 2, wrench size

41.0 mm

Connection no 1 thread pitch

2.00 mm

Connection 2, thread diameter

1 Inch

S1Connection no 1 wrench size

41.0 mm

Connection 2, threads per inch

11

Connection no 1 thread diameter

M36

Connection 2, type - male/female

Female

Connection no 1 type - male/female

Male

Connection 2, centre to end distance

38 mm

Connection no 1 center to end distance

54,5 mm

Manufacturer

Voss

Similar items you might like

Voss - GAV42LR112 - Coupling 42L R1-1/2
Voss
€22.72
Voss - GAV6LM10 - Coupling 6L M10
Voss
€5.67
Voss - GAV6LR18 - Coupling 6L R1/8
Voss
€3.18
Voss - GAV6SM12 - Coupling 6S M12
Voss
€6.93
Voss - GAV6SR14 - Coupling 6S R1/4
Voss
€4.36
Voss - GAV8LM12 - Coupling 8L M12
Voss
€6.25
Voss - GAV8LR14 - Coupling 8L R1/4
Voss
€3.32

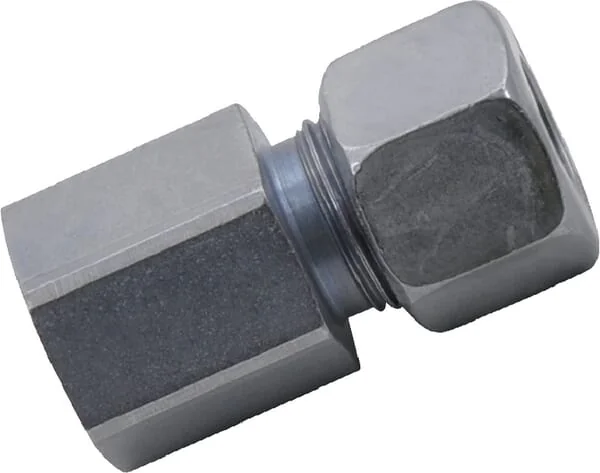

Voss - GAV8SM14 - Coupling 8S M14
