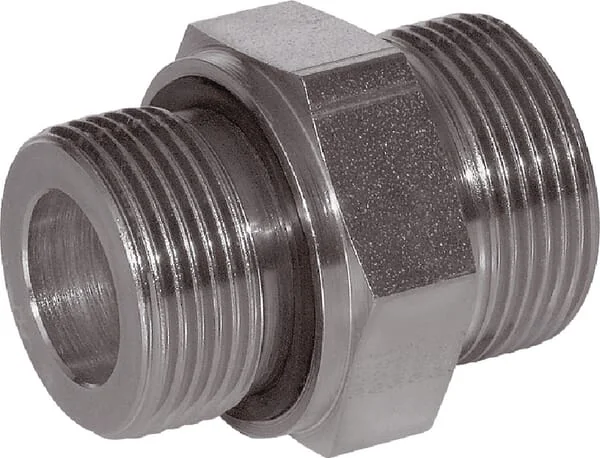

Voss - GES10LM16WD - Coupling 10L M16

Voss - GES10LM16WD - Coupling 10L M16

€3.72

(Excl. VAT)

Price

(Excl. VAT)

€3.72

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Series

10L

lgLength

31,5 mm

DIN standard

2353 228 3852 2401

ISO standard

228

Seal material

Nitrile rubber [NBR]

d1Pipe diameter

10 mm

Surface treatment

Zinc Nickel

dxInside diameter

7 mm

Connection 2, type

Seal ring

Connection no 1 type

Cutting ring

Max working pressure

400 BAR

Max. tightening torque

70 N·m

Connection no 1 diameter

10 mm

Connection 2, thread type

Metric

Connection 2, thread pitch

1.50 mm

d7Connection no 1 hex size

21,9 mm

Connection no 1 thread type

Metric

S2Connection 2, wrench size

22.0 mm

Connection no 1 thread pitch

1.50 mm

Connection 2, thread diameter

M16

SW1Connection no 1 wrench size

19.0 mm

iConnection no 1 thread length

12 mm

Connection no 1 thread diameter

16 mm

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Male

Manufacturer

Voss
