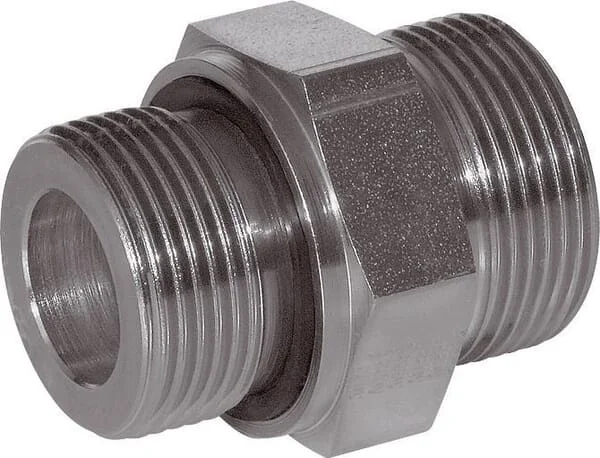

Voss - GES15LR34WD - Coupling 15L R3/4

Voss - GES15LR34WD - Coupling 15L R3/4

€6.04

(Excl. VAT)

Price

(Excl. VAT)

€6.04

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

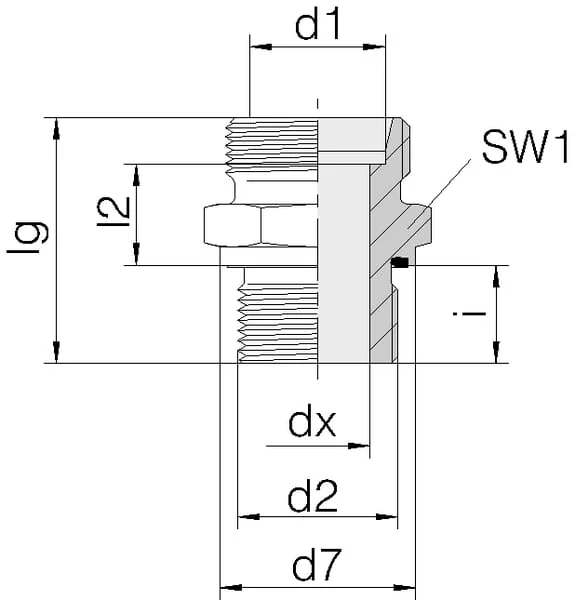

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Series

15L

lgLength

38 mm

DIN standard

2353 228 3852 2401

ISO standard

228

Seal material

Nitrile rubber [NBR]

d1Pipe diameter

15 mm

Surface treatment

Zinc Nickel

dxInside diameter

12 mm

Connection 2, type

Seal ring

Connection no 1 type

Cutting ring

Max working pressure

250 BAR

Max. tightening torque

180 N·m

Connection 2, thread type

BSP

GConnection no 1 diameter

15 mm

d7Connection no 1 hex size

31,9 mm

S2Connection 2, wrench size

32.0 mm

GConnection no 1 thread type

BSP

GConnection no 1 thread pitch

1.50 mm

Connection 2, threads per inch

14

SW1Connection no 1 wrench size

32.0 mm

iConnection no 1 thread length

16 mm

d2Connection 2, thread diameter

3/4 Inch

Connection 2, type - male/female

Male

GConnection no 1 thread diameter

M22

Connection no 1 type - male/female

Male

Manufacturer

Voss
