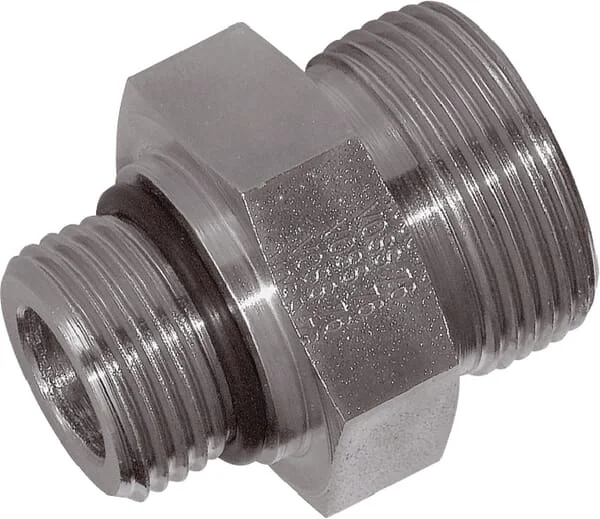

VOSS - GES18L1116UNF - THREADED FITTING 18L 1-1/16 U

OEM Quality

SKU: voss-ges18l1116unf

VOSS - GES18L1116UNF - THREADED FITTING 18L 1-1/16 U

€13.64

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€13.64

Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance Hydraulic hose Hydraulic pipes Viton seal available on request
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Brand
Voss
Part Numbers
ges18l1116unf
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Length
37 mm
Series
L
DIN standard
2353 3852 2401
SAE standard
514
Pipe diameter
18 mm
Seal material
Nitrile rubber [NBR]
Inside diameter
15 mm
Product details
Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance Hydraulic hose Hydraulic pipes Viton seal available on request
Surface treatment
Zinc Nickel
Connection 2, type
Seal ring
Connection no 1 type
Cutting ring
Max working pressure
400 BAR
Max. tightening torque
110 N·m
Connection no 1 diameter
18 mm
Connection no 1 hex size
32 mm
Connection 2, thread type
UNF
Connection no 1 thread type
UNF
S2Connection 2, wrench size
32.0 mm
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
1-1/16 Inch
S1Connection no 1 wrench size
27.0 mm
Connection 2, threads per inch
12
KConnection no 1 thread length
15 mm
Connection no 1 thread diameter
M26
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
L2Connection no 1 center to end distance
14,5 mm
Manufacturer
Voss
