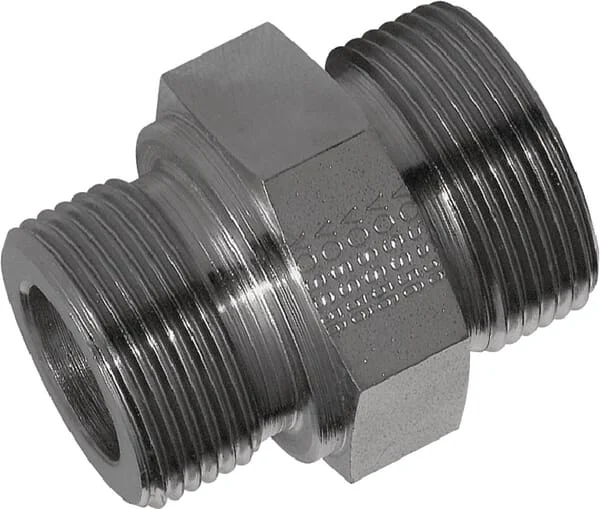

Voss - GES18LR1 - Adaptor 18L R1

Voss - GES18LR1 - Adaptor 18L R1

Voss - GES18LR1 - Adaptor 18L R1

Voss - GES18LR1 - Adaptor 18L R1

Number of products

In stock - ready to ship

Order now for delivery between 18 May and 21 May

Free shipping on orders over €60

Pay Securely with

Voss - GES18LR1 - Adaptor 18L R1

Voss - GES18LR1 - Adaptor 18L R1

€10.69

(Excl. VAT)

Price

(Excl. VAT)

€10.69

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Length

41 mm

Series

L

DIN standard

2353 228 3852 2401

ISO standard

228

Pipe diameter

18 mm

Inside diameter

15 mm

Surface treatment

Zinc Nickel

Connection 2, type

Thread

Connection no 1 type

Cutting ring

Max working pressure

200 BAR

Max. tightening torque

330 N·m

Connection no 1 diameter

18 mm

Connection no 1 hex size

39 mm

Connection 2, thread type

BSP

Connection no 1 thread type

BSP

S2Connection 2, wrench size

41.0 mm

Connection no 1 thread pitch

1.50 mm

Connection 2, thread diameter

1 Inch

S1Connection no 1 wrench size

41.0 mm

Connection 2, threads per inch

11

KConnection no 1 thread length

18 mm

Connection no 1 thread diameter

M26

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Male

L1Connection 2, centre to end distance

41 mm

L2Connection no 1 center to end distance

15,5 mm

Manufacturer

Voss
