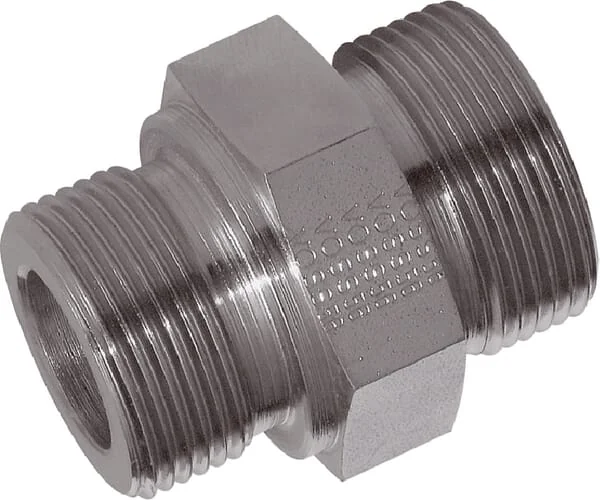

Voss - GES20SM27 - Coupling 20S M27

Voss - GES20SM27 - Coupling 20S M27

€4.25

(Excl. VAT)

Price

(Excl. VAT)

€4.25

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Length

47 mm

Series

20S

DIN standard

2353 228 3852 2401

ISO standard

228

Pipe diameter

20 mm

Inside diameter

16 mm

Surface treatment

Zinc Nickel

Connection 2, type

Thread

Connection no 1 type

Cutting ring

Max working pressure

400 BAR

Max. tightening torque

420 N·m

Connection no 1 diameter

20 mm

Connection no 1 hex size

32 mm

Connection 2, thread type

Metric

Connection no 1 thread type

Metric

S2Connection 2, wrench size

36.0 mm

d1Connection 2, thread pitch

2.00 mm

S1Connection no 1 wrench size

32.0 mm

KConnection no 1 thread length

16 mm

d2Connection no 1 thread pitch

2.00 mm

d1Connection 2, thread diameter

M30

Connection 2, type - male/female

Male

d2Connection no 1 thread diameter

27 mm

Connection no 1 type - male/female

Male

L1Connection 2, centre to end distance

20,5 mm

L2Connection no 1 center to end distance

42,5 mm

Manufacturer

Voss
