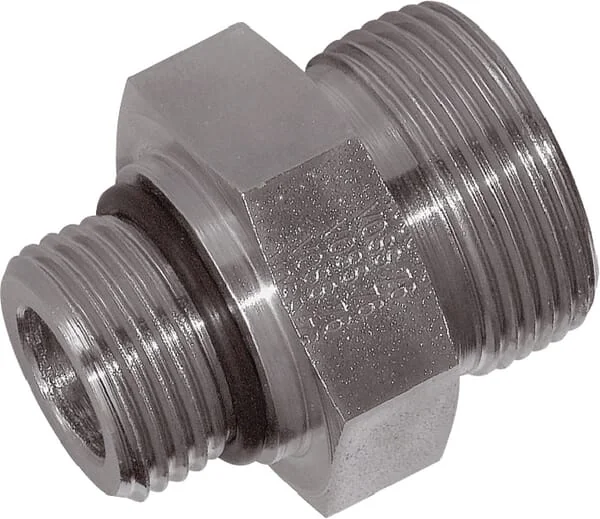

Voss - GES35L158UNF - Coupling 35l 1-5/8UNF

Voss - GES35L158UNF - Coupling 35l 1-5/8UNF

Voss - GES35L158UNF - Coupling 35l 1-5/8UNF

Voss - GES35L158UNF - Coupling 35l 1-5/8UNF

Voss - GES35L158UNF - Coupling 35l 1-5/8UNF

Voss - GES35L158UNF - Coupling 35l 1-5/8UNF

Number of products

In stock - ready to ship

Order now for delivery between 21 May and 25 May

Free shipping on orders over €60

Pay Securely with

Voss - GES35L158UNF - Coupling 35l 1-5/8UNF

Voss - GES35L158UNF - Coupling 35l 1-5/8UNF

€19.19

(Excl. VAT)

Price

(Excl. VAT)

€19.19

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Length

43 mm

Series

L

DIN standard

2353 3852 2401

SAE standard

514

Pipe diameter

35 mm

Seal material

Nitrile rubber [NBR]

Inside diameter

30 mm

Surface treatment

Zinc Nickel

Connection 2, type

Seal ring

Connection no 1 type

Cutting ring

Max working pressure

250 BAR

Max. tightening torque

220 N·m

Connection no 1 diameter

35 mm

Connection no 1 hex size

48 mm

Connection 2, thread type

UNF

Connection no 1 thread type

UNF

S2Connection 2, wrench size

50.0 mm

Connection no 1 thread pitch

2.00 mm

Connection 2, thread diameter

1-5/8 Inch

S1Connection no 1 wrench size

50.0 mm

Connection 2, threads per inch

12

KConnection no 1 thread length

15 mm

Connection no 1 thread diameter

M45

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Male

L1Connection 2, centre to end distance

17,5 mm

L2Connection no 1 center to end distance

39 mm

Manufacturer

Voss
