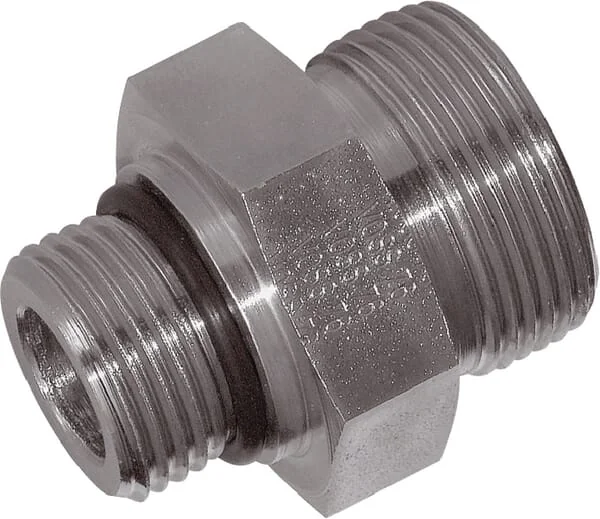

Voss - GES8L716UNF - Coupling 8L 7/16UNF
Voss - GES8L716UNF - Coupling 8L 7/16UNF
Voss - GES8L716UNF - Coupling 8L 7/16UNF
Voss - GES8L716UNF - Coupling 8L 7/16UNF
Voss - GES8L716UNF - Coupling 8L 7/16UNF
Voss - GES8L716UNF - Coupling 8L 7/16UNF

In stock - ready to ship

Order now for delivery between 22 May and 26 May
Free shipping on orders over €60

Pay Securely with

Voss - GES8L716UNF - Coupling 8L 7/16UNF

Voss - GES8L716UNF - Coupling 8L 7/16UNF

€7.43

(Excl. VAT)

Price

(Excl. VAT)

€7.43

Product Description

Genuine VOSS GES8L716UNF straight coupling, light series (L), designed for 8mm outer diameter tubing. This steel fitting features a 7/16-20 UNF male thread connection and is manufactured to DIN 2353 / ISO 8434-1 standards, suitable for hydraulic applications up to 250 bar.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Length
26,5 mm
Series
L
DIN standard
2353 3852 2401
SAE standard
514
Pipe diameter
8 mm
Seal material
Nitrile rubber [NBR]
Inside diameter
5 mm
Product details
Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance Hydraulic hose Hydraulic pipes Viton seal available on request
Surface treatment
Zinc Nickel
Connection 2, type
Seal ring
Connection no 1 type
Cutting ring
Max working pressure
500 BAR
Max. tightening torque
25 N·m
Connection no 1 diameter
8 mm
Connection no 1 hex size
15,8 mm
Connection 2, thread type
UNF
Connection no 1 thread type
UNF
S2Connection 2, wrench size
17.0 mm
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
7/16 Inch
S1Connection no 1 wrench size
17.0 mm
Connection 2, threads per inch
20
KConnection no 1 thread length
9,2 mm
Connection no 1 thread diameter
M14
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
L1Connection 2, centre to end distance
10 mm
L2Connection no 1 center to end distance
25 mm
Manufacturer
Voss
