Voss - GES8LR38WD - Coupling 8L R3/8

Voss - GES8LR38WD - Coupling 8L R3/8

Voss - GES8LR38WD - Coupling 8L R3/8

Voss - GES8LR38WD - Coupling 8L R3/8

Voss - GES8LR38WD - Coupling 8L R3/8

Voss - GES8LR38WD - Coupling 8L R3/8

Number of products

In stock - ready to ship

Order now for delivery between 22 May and 26 May

Free shipping on orders over €60

Pay Securely with

Voss - GES8LR38WD - Coupling 8L R3/8

Voss - GES8LR38WD - Coupling 8L R3/8

€3.18

(Excl. VAT)

Price

(Excl. VAT)

€3.18

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Shape

Straight - 2 connection sides

Series

8L

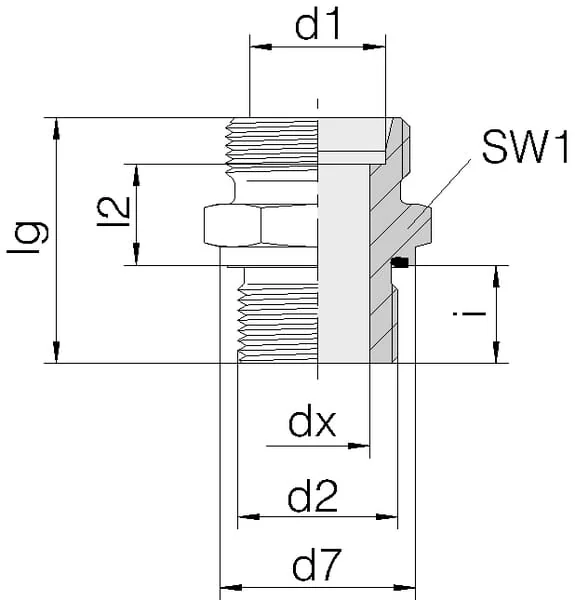

lgLength

30,5 mm

DIN standard

2353 228 3852 2401

ISO standard

228

Seal material

Nitrile rubber [NBR]

d1Pipe diameter

8 mm

Surface treatment

Zinc Nickel

dxInside diameter

6 mm

Connection 2, type

Seal ring

Connection no 1 type

Cutting ring

Max working pressure

400 BAR

Max. tightening torque

80 N·m

Connection 2, thread type

BSP

GConnection no 1 diameter

8 mm

d7Connection no 1 hex size

21,9 mm

S2Connection 2, wrench size

17.0 mm

GConnection no 1 thread type

BSP

GConnection no 1 thread pitch

1.50 mm

Connection 2, threads per inch

19

SW1Connection no 1 wrench size

22.0 mm

iConnection no 1 thread length

12 mm

d2Connection 2, thread diameter

3/8 Inch

Connection 2, type - male/female

Male

GConnection no 1 thread diameter

M14

Connection no 1 type - male/female

Male

LConnection 2, centre to end distance

11,5 mm

L2Connection no 1 center to end distance

26,5 mm

Manufacturer

Voss
