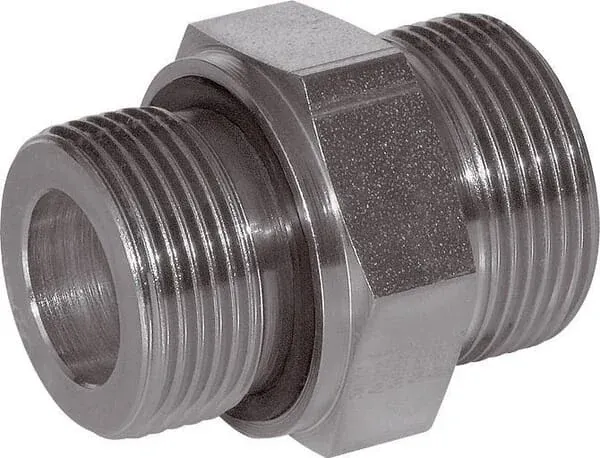

Voss - GES8SR38 - Cut Ring Coupling 08S M16x1,5 - BSP 3/8" - Male
Voss - GES8SR38 - Cut Ring Coupling 08S M16x1,5 - BSP 3/8" - Male
Voss - GES8SR38 - Cut Ring Coupling 08S M16x1,5 - BSP 3/8" - Male
Voss - GES8SR38 - Cut Ring Coupling 08S M16x1,5 - BSP 3/8" - Male
Voss - GES8SR38 - Cut Ring Coupling 08S M16x1,5 - BSP 3/8" - Male
Voss - GES8SR38 - Cut Ring Coupling 08S M16x1,5 - BSP 3/8" - Male

In stock - ready to ship

Order now for delivery between 6 April and 9 April
Free shipping on orders over €60

Pay Securely with

Voss - GES8SR38 - Cut Ring Coupling 08S M16x1,5 - BSP 3/8" - Male

Voss - GES8SR38 - Cut Ring Coupling 08S M16x1,5 - BSP 3/8" - Male

€4.27

(Excl. VAT)

Price

(Excl. VAT)

€4.27

Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Length
34,5 mm
Series
S
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
8 mm
Inside diameter
5 mm
Surface treatment
Zinc Nickel
Connection 2, type
Thread
Connection no 1 type
Cutting ring
Max working pressure
500 BAR
Max. tightening torque
180 N·m
Connection no 1 diameter
8 mm
Connection no 1 hex size
22 mm
Connection 2, thread type
BSP
Connection no 1 thread type
BSP
S2Connection 2, wrench size
19.0 mm
Connection 2, thread diameter
3/8 Inch
S1Connection no 1 wrench size
22.0 mm
Connection 2, threads per inch
19
KConnection no 1 thread length
12 mm
d2Connection no 1 thread pitch
1.50 mm
Connection 2, type - male/female
Male
d2Connection no 1 thread diameter
M16
Connection no 1 type - male/female
Male
L1Connection 2, centre to end distance
15,5 mm
L2Connection no 1 center to end distance
30,5 mm
Manufacturer
Voss
