Voss - GEV35LR114 - Reducer 35mm 1 1/4 BUDR
Voss - GEV35LR114 - Reducer 35mm 1 1/4 BUDR
Voss - GEV35LR114 - Reducer 35mm 1 1/4 BUDR
Voss - GEV35LR114 - Reducer 35mm 1 1/4 BUDR

In stock - ready to ship

Order now for delivery between 4 May and 7 May
Free shipping on orders over €60

Pay Securely with

Voss - GEV35LR114 - Reducer 35mm 1 1/4 BUDR

Voss - GEV35LR114 - Reducer 35mm 1 1/4 BUDR

€10.62

(Excl. VAT)

Price

(Excl. VAT)

€10.62

Product Description

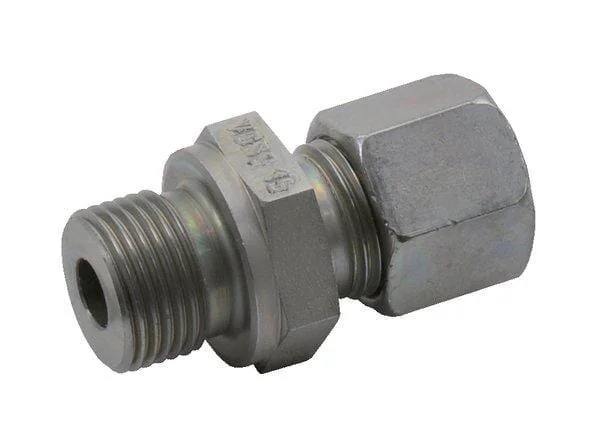

The VOSS GEV35LR114 is a genuine VOSSFormLight light series (LR) reducer fitting, engineered for robust hydraulic systems. It provides a secure connection between a 35mm outer diameter tube and a G 1 1/4" BSP parallel threaded port. Constructed from high-quality steel with a durable zinc-nickel plating, this fitting offers excellent corrosion resistance and long-term reliability in various industrial and mobile hydraulic applications.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
2S cutting ring
Unit
Each
Shape
Straight - 2 connection sides
Series
35L
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
35 mm
Product details
2S cutting ring Optimal cutting ring connection and functionality Multiple corrosion resistance
Surface treatment
Zinc Nickel
Connection 2, type
Thread
Connection no 1 type
Cutting ring
Max working pressure
200 BAR
Connection no 1 diameter
35 mm
Connection 2, thread type
BSP
Connection no 1 thread type
Metric
S2Connection 2, wrench size
50.0 mm
Connection no 1 thread pitch
2.00 mm
Connection 2, thread diameter
1-1/4 Inch
S1Connection no 1 wrench size
50.0 mm
KConnection no 1 thread length
20 mm
Connection no 1 thread diameter
M45
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
L1Connection 2, centre to end distance
17,5 mm
L2Connection no 1 center to end distance
39 mm
Manufacturer
Voss
