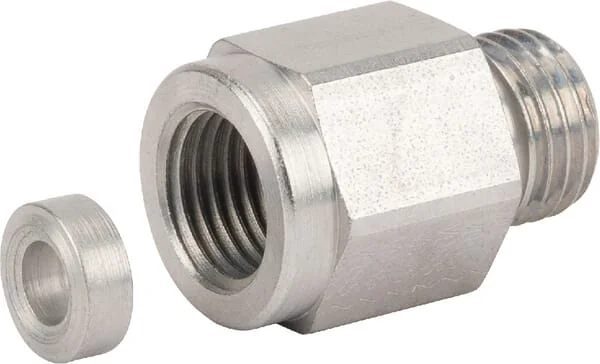

Voss - MAS10LR14 - Voss Test point coupling 10L R1/4 BS

OEM Quality

SKU: voss-mas10lr14

Voss - MAS10LR14 - Voss Test point coupling 10L R1/4 BS

€4.53€3.87 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€4.53

Brand
Voss
Part Numbers
MAS10LR14
Unit
Each
Shape
Straight - 2 connection sides
Length
30 mm
Series
10L
Includes
Coupling Without cutting ring and gland nut
APipe diameter
10 mm
Inside diameter
4,11 mm
Product details
Pressure gauge screw connection Metric cutting ring pipe fitting
Application range
Configure measuring points at any desired location in the hydraulic system
DOutside diameter
18,8 mm
Connection 2, type
Thread
Connection no 1 type
Thread
Connections distance
4,6 mm
Max working pressure
315 BAR
L1Connection no 1 length
14,5 mm
Connection 2, thread type
Metric
Connection 2, wrench size
19.0 mm
Connection 2, thread pitch
1.50 mm
Connection no 1 thread type
BSP
Connection 2, thread diameter
M16
Connection no 1 thread diameter
1/4 Inch
Connection 2, type - male/female
Male
Connection no 1 threads per inch
19
Connection no 1 type - male/female
Female
Manufacturer
Voss

Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,730 genuine Voss spare parts.
