VOSS - RSWV18LR12 - Coupling

OEM Quality

SKU: voss-rswv18lr12

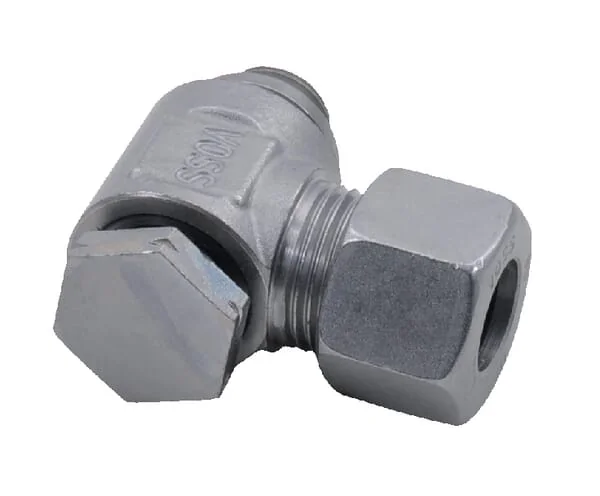

VOSS - RSWV18LR12 - Coupling

€15.61

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€15.61

2S cutting ring Optimal cutting ring connection and functionality Multiple corrosion resistance Adjustable direction The adjusted direction is fixed by lock nut
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Brand
Voss
Part Numbers
rswv18lr12
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Series
L
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
18 mm
Seal material
Metal
Product details
2S cutting ring Optimal cutting ring connection and functionality Multiple corrosion resistance Adjustable direction The adjusted direction is fixed by lock nut
Surface treatment
Zinc Nickel
Connection 2, type
Banjo
Connection no 1 type
Cutting ring
Max working pressure
400 BAR
Connection no 1 diameter
18 mm
Connection 2, thread type
BSP
Connection no 1 thread type
BSP
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
1/2 Inch
S3Connection no 1 wrench size
27.0 mm
Connection 2, threads per inch
14
KConnection no 1 thread length
14 mm
Connection no 1 thread diameter
M26
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
Connection no 1 center to end distance
38 mm
Manufacturer
Voss
