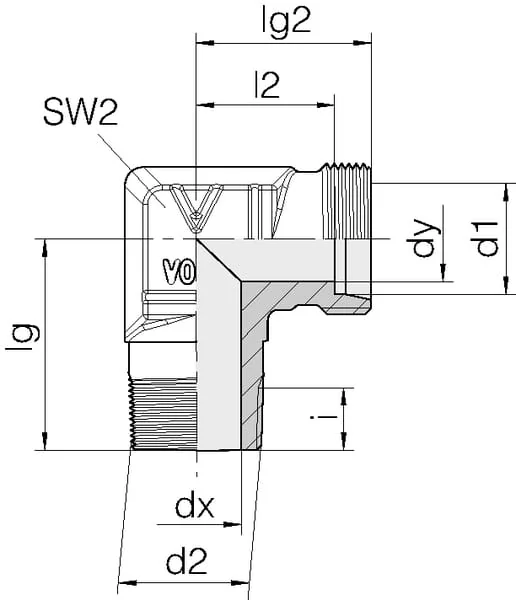

Voss - WES12LM16 - Angled Screw Connection

Voss - WES12LM16 - Angled Screw Connection

€5.24

(Excl. VAT)

Price

(Excl. VAT)

€5.24

Number of products

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand

Pros

Reduced risk of leakage

Unit

Each

Angle

90 °

Shape

Elbow - 2 connection sides

Series

L

Body height

19 mm

DIN standard

2353 228 3852 2401

ISO standard

228

Pipe diameter

12 mm

Inside diameter

9 mm10 mm

Surface treatment

Zinc Nickel

Max working pressure

315 BAR

Connection 2, thread type

Metric

Connection 2, thread pitch

1.50 mm

d2Connection no 1 diameter

12 mm

Connection no 1 thread type

Metric

S2Connection 2, wrench size

19.0 mm

Connection no 1 thread pitch

1.50 mm

Connection 2, thread diameter

M16

S1Connection no 1 wrench size

22.0 mm

KConnection no 1 thread length

12 mm

Connection no 1 thread diameter

16 mm

Connection 2, type - male/female

Male

Connection no 1 type - male/female

Female

L2Connection 2, centre to end distance

17 mm

L3Connection no 1 center to end distance

20 mm

Manufacturer

Voss
