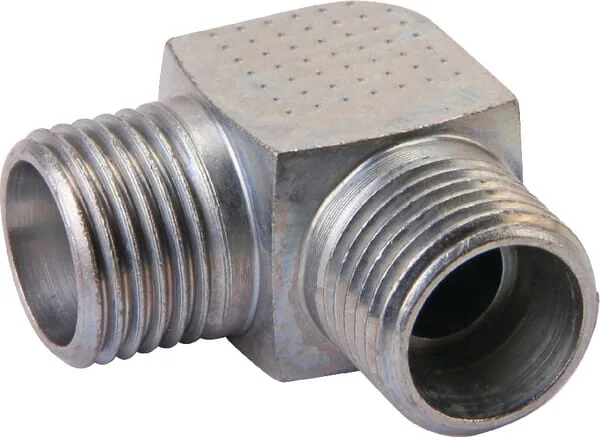

VOSS - WS22L - ELBOW 22L

OEM Quality

SKU: voss-ws22l

VOSS - WS22L - ELBOW 22L

€8.22

(excl. VAT)

In stock - ready to ship

Ships within 48 hours
Free shipping on orders over €60

Pay Securely with

Price

(Excl. VAT)

€8.22

Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Brand
Voss
Part Numbers
ws22l
Pros
Reduced risk of leakage
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Series
L
Body height
27 mm
DIN standard
2353 2401
Pipe diameter
22 mm
Inside diameter
22 mm
Product details
Direct connection with a metric hose gland or pre-mounted coupling Multiple corrosion resistance Hydraulic hose Hydraulic pipes
Surface treatment
Zinc Nickel-plated

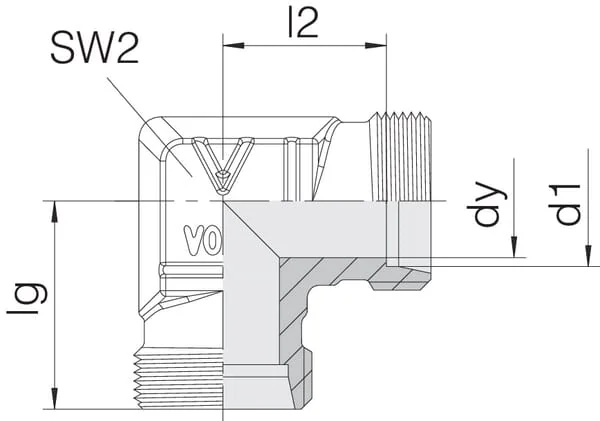

Connection 2, length
27,5 mm
Max working pressure
250 BAR
Connection 2, diameter
22 mm
Connection no 1 diameter
22 mm
Connection 2, thread type
Metric
Connection 2, thread pitch
2.00 mm
Connection no 1 thread type
Metric
S1Connection 2, wrench size
36.0 mm
Connection no 1 thread pitch
2.00 mm
Connection 2, thread diameter
M30
S2Connection no 1 wrench size
36.0 mm
Connection no 1 thread diameter
M30
Connection 2, type - male/female
Female
Connection no 1 type - male/female
Female
Connection no 1 center to end distance
27,5 mm35 mm
Manufacturer
Voss
