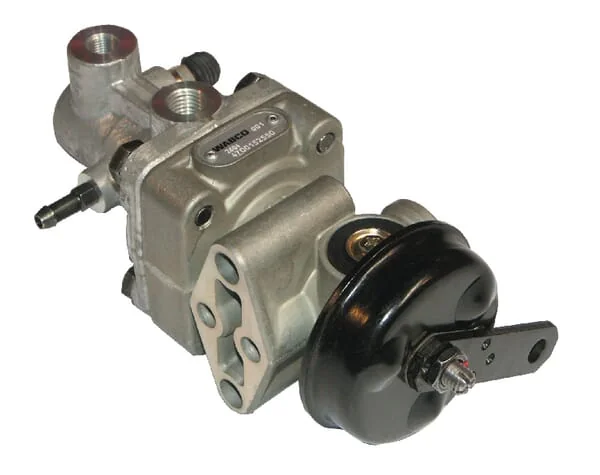

Wabco - 4700152630 - Trailer Control Valve

OEM Supplier

SKU: wabco-4700152630

Wabco - 4700152630 - Trailer Control Valve

€1,224.21

(excl. VAT)
RRP:€1,387.10
Save €162.85

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€1,224.21

Application: Control valves for dual-pipe trailer brake systems Controlling the dual-pipe trailer brake system in combination with the hydraulic main brake cylinder or the hydraulic sensor of the agricultural tractor Properties: Max. operating pressure (pneumatic part): 10 bar Max. operating pressure (hydraulic part): 120 bar Temperature range: -40 °C > +80 °C
Wabco
Wabco, originally an acronym for Westinghouse Air Brake Company, was founded in 1869 by George Westinghouse in Wilmerding, Pennsylvania, USA. The company pioneered air brake systems for railways and later expanded its expertise to commercial vehicles. Today, Wabco operates as a brand within ZF Friedrichshafen AG, a global technology company supplying systems for passenger cars, commercial vehicles, and industrial technology, headquartered in Friedrichshafen, Germany. Wabco is a leading global supplier of braking control systems, advanced driver-assistance systems (ADAS), and other technologies that improve the safety, efficiency, and connectivity of commercial vehicles. Its product range includes air disc brakes, conventional braking systems, electronic braking systems (EBS), stability control systems, and transmission automation systems. These innovations are crucial for heavy-duty trucks, buses, and trailers, ensuring optimal performance and safety on the road and in demanding off-road applications. Partao offers a comprehensive range of genuine Wabco spare parts, covering top categories such as Other Hydraulics Parts, Air Filters, Bolts & Fasteners, Brackets & Supports, and Brake Discs. Over 837 genuine Wabco spare parts are available at Partao. Manufacturers and operators of commercial and agricultural vehicles worldwide rely on Wabco's robust and technologically advanced solutions. The brand's commitment to innovation in braking and vehicle control systems ensures that its products contribute significantly to the safety and operational efficiency of heavy machinery, including agricultural trailers and specialized equipment.

Brand
Type
douple circiut
Unit
Each
Mounting
9 mm
Properties
Max. operating pressure (pneumatic part): 10 bar Max. operating pressure (hydraulic part): 120 bar Temperature range: -40 °C > +80 °C
Holes spacing
26.0 mm
Intended medium
Oil
Adsorption volume
5,5 cm³
Application range
Control valves for dual-pipe trailer brake systems Controlling the dual-pipe trailer brake system in combination with the hydraulic main brake cylinder or the hydraulic sensor of the agricultural tractor
Actuation pressure
1 BAR
Max working pressure
7,4 BAR
Connection thread pitch
1.50 mm
Max working temperature
80 °C
Min working temperature
-40 °C
Connection 2, thread pitch
1.00 mm
Connection thread diameter
M16
Connection 2, thread diameter
M10
Hydraulic part limit pressure
4 BAR
EAN
4057875216780
Manufacturer
Wabco
