Walterscheid - 101005HE - Fork 1 1/8 + Clamp Bolt
Walterscheid - 101005HE - Fork 1 1/8 + Clamp Bolt
Walterscheid - 101005HE - Fork 1 1/8 + Clamp Bolt
Walterscheid - 101005HE - Fork 1 1/8 + Clamp Bolt
Walterscheid - 101005HE - Fork 1 1/8 + Clamp Bolt
Walterscheid - 101005HE - Fork 1 1/8 + Clamp Bolt

In stock - ready to ship

Order now for delivery between 15 May and 19 May
Free shipping

Pay Securely with

Walterscheid - 101005HE - Fork 1 1/8 + Clamp Bolt

Walterscheid - 101005HE - Fork 1 1/8 + Clamp Bolt

€156.08

(Excl. VAT)

Price

(Excl. VAT)

€156.08

Product Description

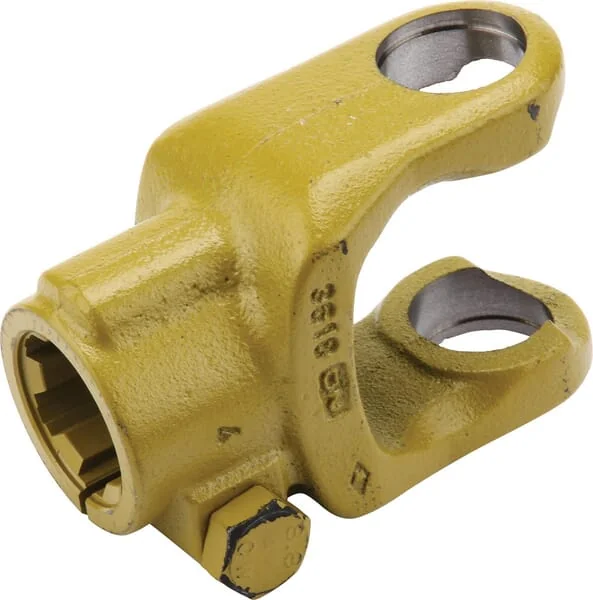

The Walterscheid 101005HE is a genuine PTO fork designed for agricultural and industrial power take-off shafts. This robust yoke features a 30 mm (1 1/8 inch) bore and includes a clamp bolt for secure attachment. It is compatible with Walterscheid PTO shaft series W2000, W2200, W2300, W2400, and W2500, ensuring reliable power transmission and durability.
Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,300 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Pros
Clamp bolt ensures good hold on the shaft
Type
Clamp bolt
Unit
Each
Length
95 mm
Details
Clamping pin provides effective clamping effect on the shaft
Benefits
Assembly with no play
Includes
Yoke Clamp bolts
Properties
- Double clamp bolt
Consists of
Fork Clamping pin
Locking system
Clamp bolt (interfering)
Technical info
In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005
Product details
Slack-free installation Interfering
Shaft size code
W2100 W100E
Long description
Yokes with clamp bolt closure W series / Power Drive
Application range
Rotary tillers Shredders Wood shredders Stump grinders
D2Bolt thread diameter
M12
Outside connection diameter
1-1/8 Inch
Connection number of splines/grooves
6
Manufacturer
Walterscheid
