Home
Attachments & Lift
Hitches & Linkage Parts
Top Links

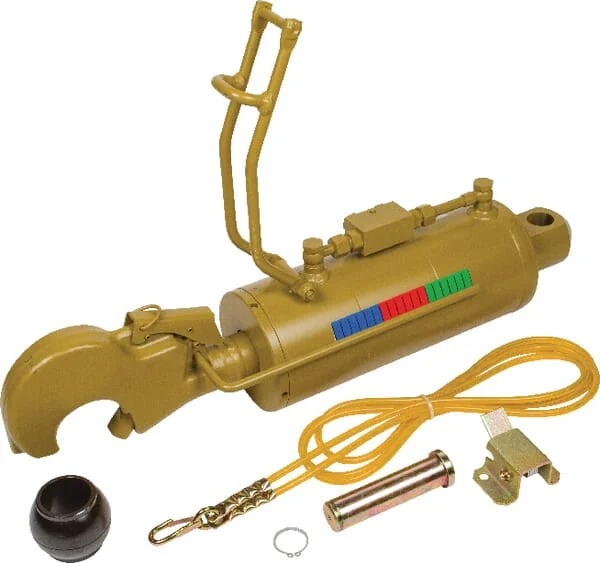

Walterscheid - 205131 - Hydraulic Top Link, Hook With Ball Cat. 4HD, Diameter 120 mm
Walterscheid - 205131 - Hydraulic Top Link, Hook With Ball Cat. 4HD, Diameter 120 mm
Walterscheid - 205131 - Hydraulic Top Link, Hook With Ball Cat. 4HD, Diameter 120 mm
Walterscheid - 205131 - Hydraulic Top Link, Hook With Ball Cat. 4HD, Diameter 120 mm

In stock - ready to ship

Order now for delivery between 20 May and 23 May
Free shipping

Pay Securely with

Walterscheid - 205131 - Hydraulic Top Link, Hook With Ball Cat. 4HD, Diameter 120 mm

Walterscheid - 205131 - Hydraulic Top Link, Hook With Ball Cat. 4HD, Diameter 120 mm

€1,813.55

(Excl. VAT)

Price

(Excl. VAT)

€1,813.55

Product Description

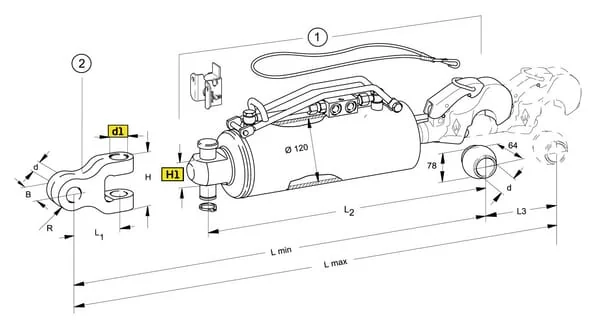

The stated length refers to the length without fork head, measured from the centre distance
Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Unit
Each
Benefits
Maximum tensile and compressive force for optimum performance Versatile in use by mounting various fork heads Valve block protected by special reinforced bars
L3Stroke
183 mm
Consists of
Supplied with handle and tractor-side holder Note: fork head must be ordered separately.
L maxMax. length
777 mm
L minMin. length
594 mm
Outside diameter
135 mm
Application range
For tractors over 294 kW
Max.tractor power
294 kW
Cylinder bore diameter
120 mm
Mounting type - rod connection
Hook
Top link category - rod connection
4
Mounting type - cylinder connection
No mounting
Mounting hole diameter - rod connection
45,2 mm
Top link category - cylinder connection
4
Manufacturer
Walterscheid
