Walterscheid - 309535 - Upper Link

OEM Supplier

SKU: walterscheid-309535

Walterscheid - 309535 - Upper Link

€697.94

(excl. VAT)
RRP:€913.51
Save €215.59

In stock - ready to ship

Ships within 48 hours
Free shipping

Pay Securely with

Price

(Excl. VAT)

€697.94

Genuine Walterscheid 309535 lifting rod ball joint, engineered for robust and reliable connection within agricultural upper link assemblies. This high-quality component features a 25.4 mm bore diameter, 51 mm overall length, 44 mm width, and weighs 0.12 kg, ensuring secure and efficient operation.
Walterscheid
Walterscheid, founded in 1919 in Lohmar, Germany, has a long-standing history in power transmission technology. The company initially focused on components for agricultural machinery, quickly establishing itself as a leader in driveline systems. Today, Walterscheid Powertrain Group is a global leader in agricultural and off-highway driveline and intelligent system solutions, with its headquarters still located in Lohmar. The brand is renowned for its high-quality PTO (Power Take-Off) shafts, driveline systems, gearboxes, and coupling systems. These components are engineered for durability, efficiency, and safety, serving a wide range of agricultural machinery from tractors to various implements. Walterscheid's innovations often focus on enhancing power transfer, reducing vibration, and improving operational safety for farmers. Partao offers a comprehensive selection of Walterscheid components, including PTO Guards & Shields, Air Filters, Alternators, Axle Assemblies, and Ball Bearings. Over 66,302 genuine Walterscheid spare parts are available at Partao. Agricultural professionals worldwide trust Walterscheid for robust and reliable power transmission solutions. The company's commitment to engineering excellence ensures that its parts can withstand the demanding conditions of modern farming, contributing to the longevity and performance of agricultural equipment across diverse applications, from tillage to harvesting.

Part Numbers
309535
Unit
Each
Details
All components can be replaced separately
Benefits
Versatile in use by mounting various fork heads Long service life Valve block protected by special reinforced bars
L3Stroke
230 mm
Consists of

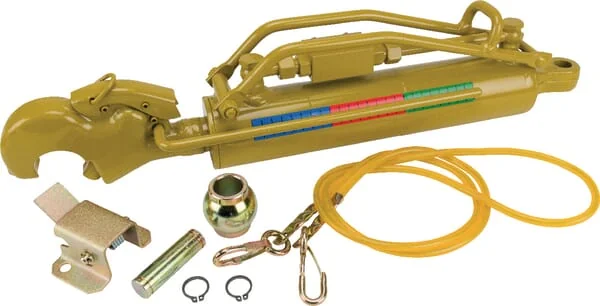

Hydraulic Toplink Equipped with marking rod and label, Ball, Release Cable, Handle and tractor side holder Without hose kit Note: fork head must be ordered separately.
L maxMax. length
783 mm
L minMin. length
553 mm
Outside diameter
75 mm
Application range
For tractors up to 74 kW / 100HP
Max.tractor power
74 kW
Cylinder bore diameter
63 mm
Mounting type - rod connection
Hook
Top link category - rod connection
2
Mounting type - cylinder connection
No mounting
Mounting hole diameter - rod connection
25,4 mm
Top link category - cylinder connection
2
Manufacturer
Walterscheid
