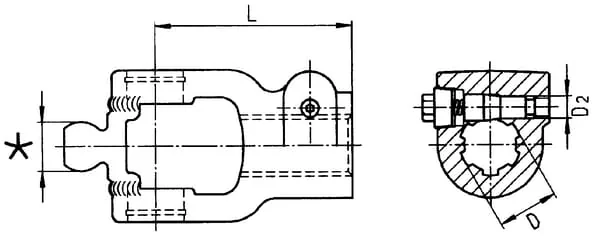

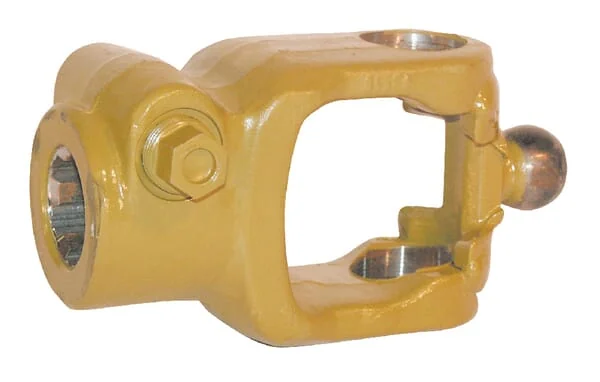

Walterscheid - 3618830M - Fork CC 1 3/4 6PC W2580
Walterscheid - 3618830M - Fork CC 1 3/4 6PC W2580
Walterscheid - 3618830M - Fork CC 1 3/4 6PC W2580
Walterscheid - 3618830M - Fork CC 1 3/4 6PC W2580
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Walterscheid - 3618830M - Fork CC 1 3/4 6PC W2580

Walterscheid - 3618830M - Fork CC 1 3/4 6PC W2580

€563.41

(Excl. VAT)

Price

(Excl. VAT)

€563.41

Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Type
Clamp bolt
Unit
Each
Length
125 mm
Details
Conical pin provides effective clamping effect Housing without slot
Benefits
Assembly with no play Clamping pin is not loaded for stretching
Properties
Clamp cone bolt
Consists of
Fork Conical clamping pin
Ball diameter
30 mm
Locking system
Clamp cone
Technical info
In accordance with safety standard EN12965, do not use yoke on tractor side for machines which were produced after 2005
Shaft size code
W2580
Long description
Wide-angle clamping cone yokes with CC lock series W 2450 / 50°
Application range
Rotary tillers Shredders Wood shredders Stump grinders
Outside connection diameter
1-3/4 Inch
Connection number of splines/grooves
6
Manufacturer
Walterscheid
