Walterscheid - 395692995 - Universal Shaft W/200 E-15 09 09 10
Walterscheid - 395692995 - Universal Shaft W/200 E-15 09 09 10

Last known price:

€145.04

Get an up-to-date price and availability

Request a Quote

Pay Securely with

Walterscheid - 395692995 - Universal Shaft W/200 E-15 09 09 10

Walterscheid - 395692995 - Universal Shaft W/200 E-15 09 09 10

Last known price:

€145.04

Request a Quote

Product Description

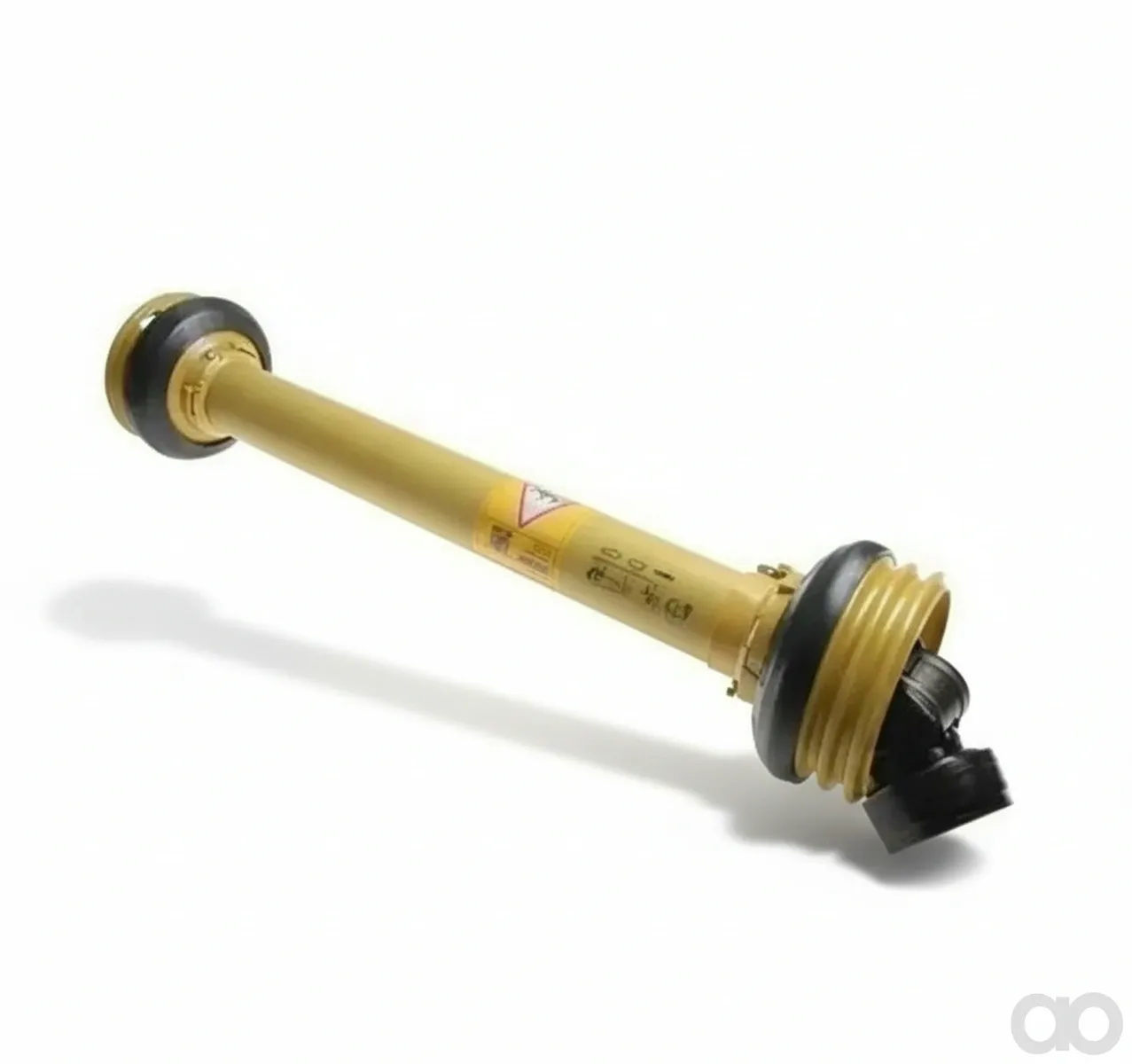

The Walterscheid genuine PTO shaft 395692995, model W2200-2000-E15-09-09-10, is designed for reliable power transmission in agricultural machinery. This robust power take-off shaft features a closed length of 1010 mm and a maximum working length of 1500 mm. It is equipped with E15 tube profiles and 1 3/8" Z6 splined yokes on both the tractor and implement sides (type 09). Engineered for durability, it handles 35 kW (47 hp) at 540 rpm and 55 kW (75 hp) at 1000 rpm, with corresponding torques of 620 Nm and 525 Nm. This Walterscheid W2200 series shaft ensures efficient and secure connection between tractor and implement.
Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Product Details

Brand
walterscheid
Series
W2200
Type
W2200-2000
Closed Length (mm)
1010
Max Working Length (mm)
1500
Tractor Side Yoke
1 3/8" Z6 (09)
Implement Side Yoke
1 3/8" Z6 (09)
Tube Profile
E15
Protection Type
10
Power At 540 RPM (kW)
35
Power At 1000 RPM (kW)
55
Torque At 540 RPM (Nm)
620
Torque At 1000 RPM (Nm)
525
Weight (kg)
20.0
Quality
OEM Supplier
Manufacturer
walterscheid
