Walterscheid - 5610709 - Friction Clutch K90/4
Walterscheid - 5610709 - Friction Clutch K90/4
Walterscheid - 5610709 - Friction Clutch K90/4
Walterscheid - 5610709 - Friction Clutch K90/4
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Walterscheid - 5610709 - Friction Clutch K90/4

Walterscheid - 5610709 - Friction Clutch K90/4

€1,305.62

(Excl. VAT)

Price

(Excl. VAT)

€1,305.62

Product Description

No power interruption Catches peak loads for short periods of time Independent rotation direction Power transmission via skid plates Adjustable Suitable as starting torque Observe maintenance instructions
Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Pros
Maintains torque Smooth running
Unit
Each
Benefits
Torque retention Smooth transition
Properties
Independent of direction of rotation Power transmission via friction discs Adjustable Suitable as a starting clutch
Cross length
120 mm
Technical info
Observe maintenance instructions
Shaft size code
W2600 P600
Clutch type code
K90/4
Application range
Mowers Rotary harrows Pick-up
Max static torque
1400 N·m
Cross cap diameter
42 mm
DØOutside diameter
190 mm
LClutch part length
58 mm
Max. rotation speed
1000 r/min
Connection locking type
Clamp bolt (interfering)
Outside connection diameter
1-3/4 Inch1.75 Inch
Connection number of splines/grooves
20
Manufacturer
Walterscheid

Similar items you might like

  • Walterscheid

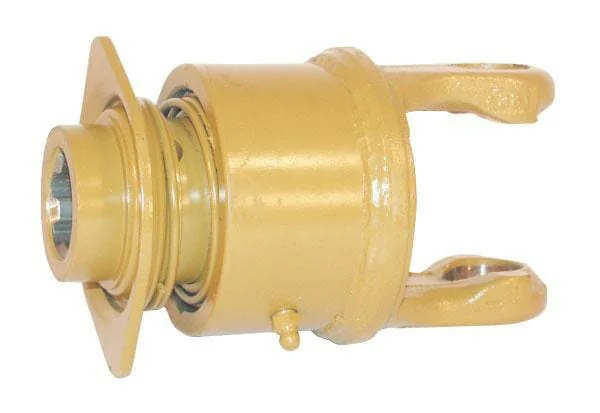

    Walterscheid - 5610740 - Overrunning Clutch F5/1 W2500 13/8-21

    Walterscheid

    €446.12

  • Walterscheid

    Walterscheid - 5610839165 - Friction Clutch K90/4TF W2500

    Walterscheid

    €723.66

  • Walterscheid

    Walterscheid - 5610926130 - Clutch K92E 2400 1"3/8Z6 130dn

    Walterscheid

    €628.43

  • Walterscheid

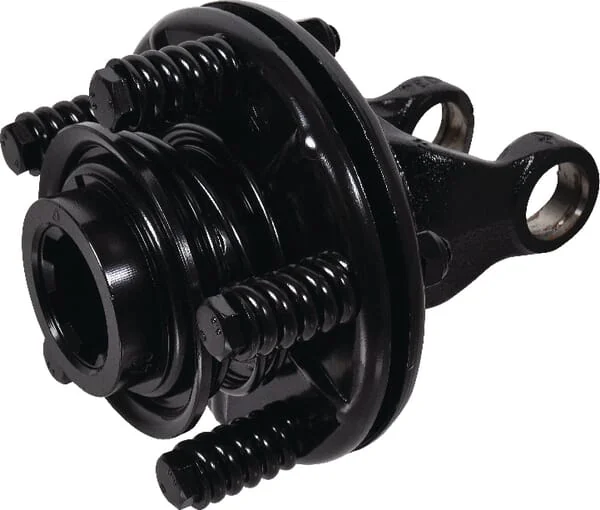

    Walterscheid - 561171940 - K94/1 Friction Clutch
