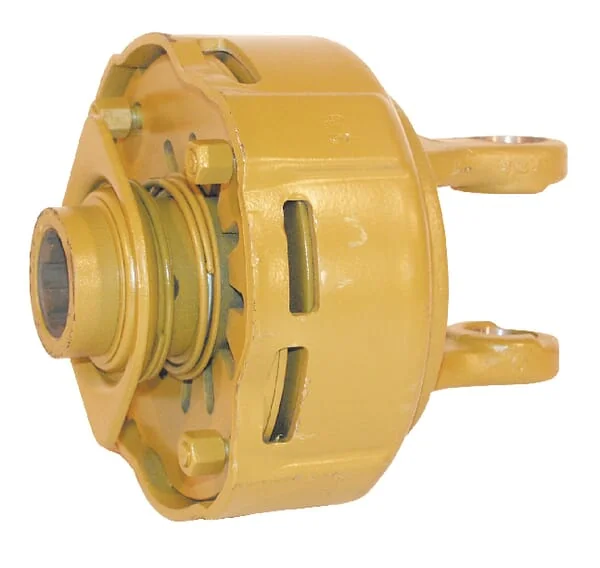

Walterscheid - 5621816105 - Coupling W2300-K92/4 105 daNm
Walterscheid - 5621816105 - Coupling W2300-K92/4 105 daNm
Walterscheid - 5621816105 - Coupling W2300-K92/4 105 daNm
Walterscheid - 5621816105 - Coupling W2300-K92/4 105 daNm

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping

Pay Securely with

Walterscheid - 5621816105 - Coupling W2300-K92/4 105 daNm

Walterscheid - 5621816105 - Coupling W2300-K92/4 105 daNm

€594.70

(Excl. VAT)

Price

(Excl. VAT)

€594.70

Product Description

The Walterscheid 5621816105 is a genuine friction disc slip clutch, type W2300-K92/4, engineered to protect agricultural and industrial machinery from overload. This high-quality torque limiter features a nominal torque setting of 105 daNm, ensuring reliable power transmission and system protection in demanding applications. Ideal for use in PTO drive shafts, it prevents damage to implements and tractors by slipping when torque exceeds the set limit.
Walterscheid
Walterscheid is a leading manufacturer of driveline components and power transmission systems for agricultural machinery. The brand produces PTO shafts, couplings, and gearboxes for tractors and implements. Its solutions are engineered for high torque and durability in demanding farming applications. Shop more than 6,302 genuine Walterscheid spare parts.

Product Details

Brand
Walterscheid
Unit
Each
Details
Compact construction -No interruption of power transmission Absorb peak loads for a short time
Benefits
Small installation space Torque retention Smooth transition
Properties
Independent of direction of rotation Power transmission via friction discs Not adjustable Suitable as a starting clutch
Cross length
75 mm
Technical info
Observe maintenance instructions
Shaft size code
W2300
Clutch type code
K92/4
Long description
Friction clutches with Belleville springs K92 / 4 cpl. 2300, 2400, 2500
Outside diameter
173 mm
Application range
Mowers Rotary harrows Pick-up
Max static torque
1050 N·m
Cross cap diameter
27 mm
LClutch part length
64 mm
Max. rotation speed
1000 r/min
Connection locking type
Collar lock
Outside connection diameter
1-3/8 Inch1.375 Inch
Connection number of splines/grooves
6
Manufacturer
Walterscheid
